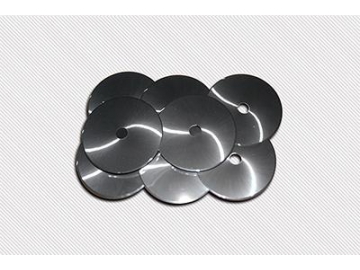

Tape Slitting Blade

: http://setonknife.com/5-2-tape-slitting-blade.html

Application
The tape slitting blade is mainly used on tape cutting machines to cut scotch transparent tape, electrical tape, cloth tape, double-sided tape and all kinds of special tapes. Seton's unique blade edge design and product quality are unanimously recognized by customers.

Material introduction
According to the types of slitting tapes and machines, the commonly used materials are SKH-51, tungsten carbide (YG10, YG12X, YG15). The selection of blades' materials, the processing technology and blade edge design directly affect the blades' service life and application effect. Seton will design the most suitable blades for you.

Parameters

Hardness	HRA 89-93
Thickness tolerance	±0.01
Tolerance of inner hole	0.01-0.04
Smoothness	Ra 0.1um

Features

With unique design of blade edge, the products have good cutting quality.
The smoothness reaches Ra 0.1um, so that the blade will not be adhered with tapes during use.
High quality formulation and mature processing technology avoid the alloy blade from chipping due to being too brittle.

Customization
Customized and designed by customers' machine type and application requirements.

Common specifications

Specification	Outer diameter Φ	Inner diameter Φ1	Thickness
Φ180×Φ25.4×2mm	180	25.4	2mm
Φ200×Φ25.4×2mm	200	25.4	2mm
Φ250×Φ25.4×2.5.mm	250	25.4	2.5mm
Φ300×Φ25.4×3mm	300	25.4	3mm
Φ350×Φ25.4×3mm	350	25.4	3mm
Φ450×Φ25.4×4mm	450	25.4	4mm
Φ550×Φ25.4×5mm	550	25.4	5mm
Φ610×Φ68.3×4.76mm	610	68.3	4.76mm
