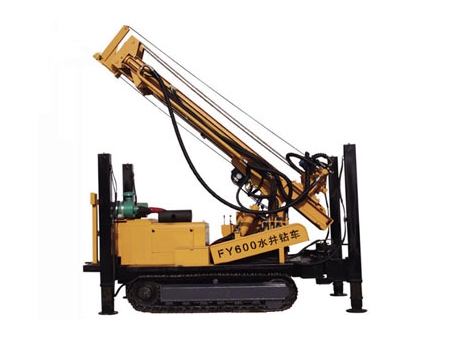

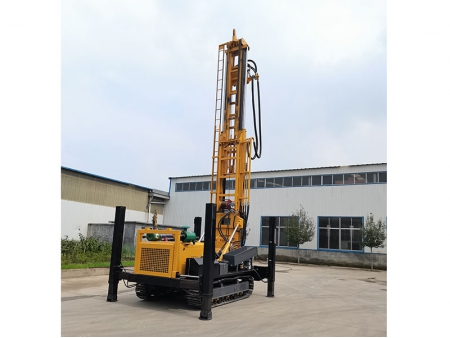

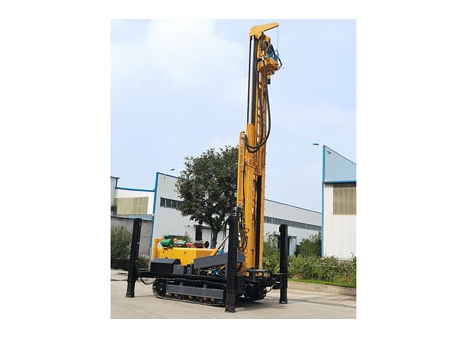

KW600C Water Well Drilling Rig
KW600C water well drilling rig is used for drilling water well, agricultural well and other wells, especially suitable for well projects in mountain and rock geological conditions. Its efficiency is 10 times higher than the traditional rotary drilling rigs, creating considerable economy benefits for users. This geothermal driller solves the difficulty of DTH drilling rig in drilling soil and solves the construction problems of rotary drilling rigs in hard rock layer, gravel and pebble layers. In a word, KAISHAN water well driller can efficiently operate under various complicated geological conditions and serves as both gas and water driller.
The overhead drive head has a large spindle diameter, making the drilling rig capable of drilling the mud, air and foam to satisfy the requirements of different geological conditions.
Brief Parameters
Drilling Depth:600m
Drilling Diameter:140-400mm
Diesel Engine Power:132Kw
Features
1.The hydraulic transmission makes efficient use of the power, resulting in a small power loss and low drilling cost.
2.Unique hydraulic matching system allows a high system efficiency.
3.Integrated visual compression and decompression feed system allows to adjust the drilling pressure depending on the drilling depth.

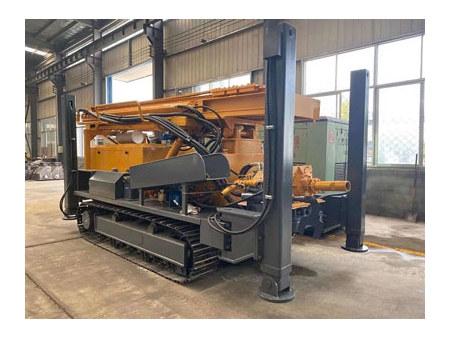

4.Four hydraulic legs are equipped to quickly level the rig without lifting. The swing centering device provides a wide operating space.
5.KW600C water well driller has advanced structure, reasonable layout and easy maintenance.
6.The drill rig has reserved some functional interfaces in the hydraulic system, allowing function expansion according to users’ technological requirements.
| Model | KW600C |
| Drilling depth | 600m |
| Hole diameter | Ø140--400mm |
| One-time advance length | 6.6m |
| Working pressure | 17-35bar |
| Air consumption | 17-42m³/min |
| Drilling pipe length | 1.5m, 2m, 3m, 6m |
| Drill pipe diameter | Ø102, Ø108, Ø114mm |
| Rig lifting force | 30T |
| Hoisting force of winch | 2T |
| Rotary torque | 8850-13150N.m |
| Rotary speed | 45-140r/min |
| The penetration efficiency | 15-35m/h |
| High leg stroke | 1.7m |

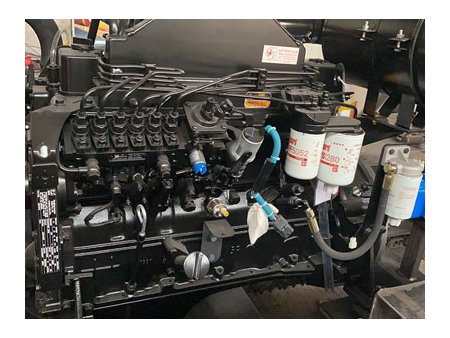

| Diesel engine brand | Cummins |
| Equipped capacitor | 132kW |
| Walking speed | 0-2.5 km/h |
| Climb capacity | 30° |
| Weight | 13 t |
| Dimension | 6300*2300*2650mm |
| Application | Complicated geological conditions: Rock, mud, sand etc. |
| Drilling way | Superior hydraulic rotation and propulsion DTH drilling or mud pumping |
| Hammer | 6", 7",8" Medium and high wind pressure series |
| Tool | Winch, welding machines. foam pump |
