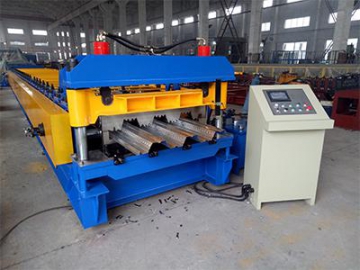

YX45-975.8 Floor Decking Roll Forming Machine

YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
YX45-975.8 Floor Decking Roll Forming Machine
: http://roll-formingmachines.com/5-3-yx45-975-8-floor-decking-roll-forming-machine.html
  • Easy operation, low maintenance cost
  • Higher quality, available for rolling the max steel thickness 1.5mm with 550mpa
  • High cost performance
Samples
Profiles
Specifications
Model YX45-975.8
Dimension 16000*1800*1500mm
Hydraulic Motor Power 37KW
Forming Steps 30 steps
Forming Speed 10-15m/min
Voltage 380V/50HZ/3PH
Material Thickness 0.8-1.2mm or 0.8-1.5mm
Rib Height of Decking 45mm
Effective Cover Width of Decking 975.8mm
Feeding Material Width 1219mm
Roller Material Gcr15 steel with Heat Treatment and Plate Hard Chrome on the surface
Shaft Material 40Cr Steel
Cutter Material Cr12Mov with Heat Treatment
Control System PLC Control
The followings are the common features of our floor deck roll forming machine

  • Cutter is made of Cr12Mov mold steel, HRC60-62

  • Rollers manufactured from high quality Gr15 mold steel 45# steel, CNC lathes, Heat Treatment. With black treatment or hard-chrome coating for options. Body frame made from 400# H type steel by welding

  • Hydraulic pre cutter available operation for the hydraulic pre cutter, to save the material

Main Accessories
  • Main Machine
  • 5 Tons Hydraulic Uncoiler
  • Hydraulic Forming Cutter (Material: Cr12Mov with heat treatment)
  • Hydraulic Motor System
  • PLC Computer Controlling System with touch Screen (Brand: Schneider)
  • Tools
  • Operation Manual
Transportation Package
