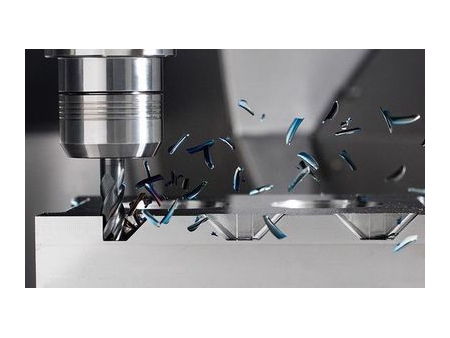

EMD04 Carbide, 4 Flute Corner Radius, for Titanium & Stainless
- Differential Helix (DH) design reduces cutting force and improves machining performance
- Corner Radius (CR) provides great edge protection, ensuring longer tool life
- Suits for the machining of difficult-to-cut materials such as Ni-Co Alloy, Titanium & SUS with a hardness up to 40HRC
- Designed for high speed machining, the optimized cutting tool can be used for both roughing and finishing operations
Application
Product Specifications
| Coating | TF | Work Material | Titanium & Stainless Steels, etc. |
| Helix Angle | 35°/37° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide 4 Flute Corner Radius End Mill for Stainless Steel (UNT-EMD04) - Heavy Duty Type
| UNT EDP # Click to Order | Corner Radius R | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
| EMD040101 | 0.1 | 1.0 | 4 | 3 | 50 | 4 |
| EMD040102 | 0.2 | 1.0 | 4 | 3 | 50 | 4 |
| EMD040201 | 0.1 | 2.0 | 4 | 6 | 50 | 4 |
| EMD040202 | 0.2 | 2.0 | 4 | 6 | 50 | 4 |
| EMD040205 | 0.5 | 2.0 | 4 | 6 | 50 | 4 |
| EMD040302 | 0.2 | 3.0 | 4 | 8 | 50 | 4 |
| EMD040303 | 0.3 | 3.0 | 4 | 8 | 50 | 4 |
| EMD040305 | 0.5 | 3.0 | 4 | 8 | 50 | 4 |
| EMD040402 | 0.3 | 4.0 | 4 | 11 | 50 | 4 |
| EMD040403 | 0.3 | 4.0 | 4 | 11 | 50 | 4 |
| EMD040405 | 0.5 | 4.0 | 4 | 11 | 50 | 4 |
| EMD040605 | 0.5 | 6.0 | 6 | 16 | 50 | 4 |
| EMD040610 | 1.0 | 6.0 | 6 | 16 | 50 | 4 |
| EMD040805 | 0.5 | 8.0 | 8 | 20 | 60 | 4 |
| EMD040810 | 1.0 | 8.0 | 8 | 20 | 60 | 4 |
| EMD041005 | 0.5 | 10.0 | 10 | 25 | 75 | 4 |
| EMD041010 | 1.0 | 10.0 | 10 | 25 | 75 | 4 |
| EMD041205 | 0.5 | 12.0 | 12 | 30 | 75 | 4 |
| EMD041210 | 1.0 | 12.0 | 12 | 30 | 75 | 4 |
| EMD041605 | 0.5 | 16.0 | 16 | 45 | 100 | 4 |
| EMD041610 | 1.0 | 16.0 | 16 | 45 | 100 | 4 |
| EMD041620 | 2.0 | 16.0 | 16 | 45 | 100 | 4 |
| EMD042010 | 1.0 | 20.0 | 20 | 45 | 100 | 4 |
| EMD042020 | 2.0 | 20.0 | 20 | 45 | 100 | 4 |
• Non-standard size or product parameters not listed above, can be customized according to customer needs.
