Description

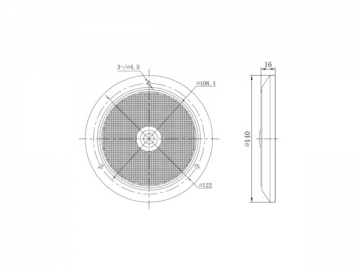

The LED dome light is surface mounted and features a slim design. The dome light has an outer diameter of Φ140mm, and features an optional milky lens for a smooth and even lighting. The LED light has excellent illumination effects, and also has an optional clear lens for an even higher lighting efficiency.

Product selection:

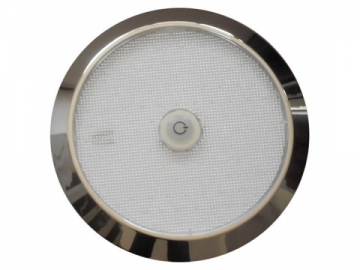

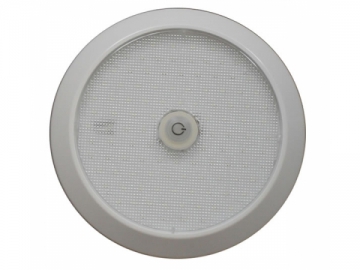

IDL140S
IDL140S (Clear lens, with switch)

    Specification:
    Operating Voltage: 10~33VDC
    Operating Temperature: -40~55℃
    Light Source: 72PCS of high light efficiency SMT LEDs; CRI>80
    Power: ~5W max,Operating Current: 0.40A @12VDC; 0.20A @ 24VDC
    Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white (optional);
    Or other customized color,Blue light for night is available
    Luminous Flux: 500lm
    Light Emitting Angle: 160°, floodlight type;
    IP66
    Frame color: white、chromed or customized color
    Clear or milky outer lens (optional)
    CE Approval

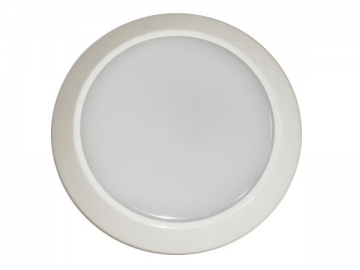

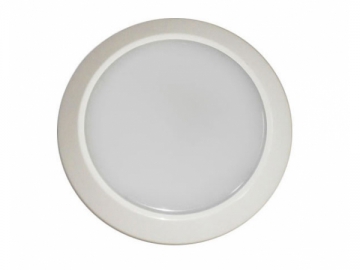

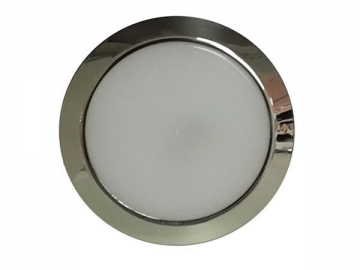

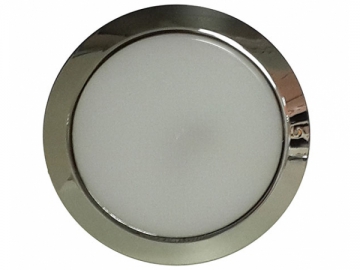

    IDL140-F
    IDL140-F (Milky lens)

      Specification:
      Operating Voltage: 10~33VDC
      Operating Temperature: -40~55℃
      Light Source: 72PCS of high light efficiency SMT LEDs; CRI>80
      Power: ~5W max,Operating Current: 0.40A @12VDC; 0.20A @ 24VDC
      Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white (optional);
      Or other customized color, Blue light for night is available
      Luminous Flux: 500lm
      Light Emitting Angle: 160°, floodlight type;
      IP66
      Frame color: white、chromed or customized color
      Clear or milky outer lens (optional)
      CE Approval

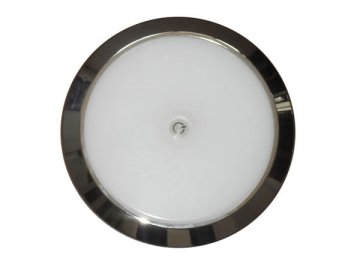

      IDL140S-F
      IDL140S-F (Milky lens, with switch)

        Specification:
        Operating Voltage: 10~33VDC
        Operating Temperature: -40~55℃
        Light Source: 72PCS of high light efficiency SMT LEDs; CRI>80
        Power: ~5W max,Operating Current: 0.40A @12VDC; 0.20A @ 24VDC
        Light Color: ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white (optional);
        Or other customized color,Blue light for night is available
        Luminous Flux: 500lm
        Light Emitting Angle: 160°, floodlight type;
        IP66
        Frame color: white、chromed or customized color
        Clear or milky outer lens (optional)
        CE Approval

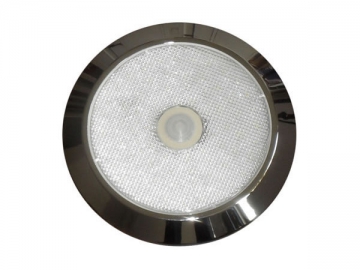

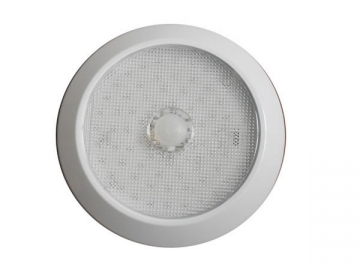

        IDL180S
        IDL180S (Clear lens, with switch)

        Specification:
        Operating Voltage: 10~33VDC
        Operating Temperature: -40~55℃
        Light Source: 108PCS of high light efficiency SMT LEDs,CRI>80
        Power: ~8.5W max Operating Current: 0.7A @12VDC, 0.35A @ 24VDC
        Light Color (optional):~3000K warm white, 4000~4500K natural white, 6000~6500K pure white ;
        Or other customized color,Blue light for night is available
        Luminous Flux: 850lm
        Light Emitting Angle: 160°floodlight type;
        IP66
        Frame color: white、chromed or customized color
        Optional Clear or milky outer lens
        CE Approval

        IDL180-F
        IDL180-F(Milky lens)

          Specification:
          Operating Voltage: 10~33VDC
          Operating Temperature: -40~55℃
          Light Source: 108PCS of high light efficiency SMT LEDs, CRI>80
          Power: ~8.5W max Operating Current: 0.7A @12VDC, 0.35A @ 24VDC
          Light Color(optional):~3000K warm white, 4000~4500K natural white, 6000~6500K pure white ;
          Or other customized color,Blue light for night is available
          Luminous Flux: 850lm
          Light Emitting Angle: 160°floodlight type;
          IP66
          Frame color: white、chromed or customized color
          Optional Clear or milky outer lens
          CE Approval

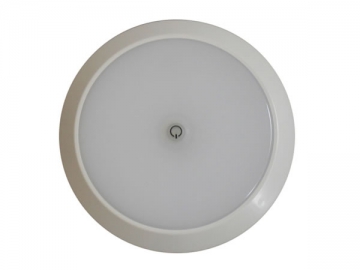

          IDL180S-F
          IDL180S-F (Milky lens, with switch)

            Specification:
            Operating Voltage: 10~33VDC
            Operating Temperature: -40~55℃
            Light Source: 108pcs of high light efficiency SMT LEDs, CRI>80
            Power: max. 8.5W
            Operating Current: 0.7A @12VDC, 0.35A @ 24VDC
            Light Color (optional): ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white, or other customized color; blue light for night is available
            Luminous Flux: 850lm
            Light Emitting Angle: 160° floodlight type
            IP66
            Frame color: white, chromed or customized color
            Optional clear or milky outer lens
            CE approved

            Applications
            The LED dome light is widely used in shelters, cabins busses, caravans, refrigerator cars, and specialty vehicles.
