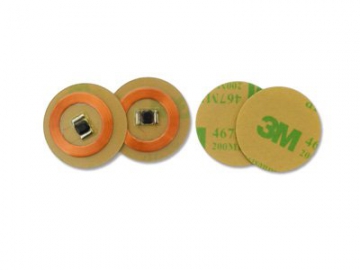

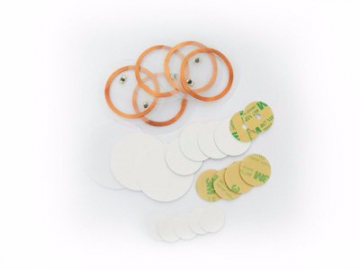

Mini RFID Tag

: http://jlrfidlabel.com/2-7-printed-rfid-tag.html

Mini RFID tag has a minimum diameter of 20mm. It is made from PVC or PET materials. This product has excellent waterproof and corrosion resistant. It can be provided with anti-metal layer so as to stick on the surface of metal. Mini RFID Tag uses ISO14443A or ISO15693 chips.

● Basic parameters
Types	Passive RFID tag
Working frequency	125KHz, 13.56MHz
Protocol ISO14443A, ISO15693
● Physical parameters
Size	20mm, 25mm, 30mm or customized
Packaging Materials	PET, PVC, transparent PVC
Antenna	Copper coil, aluminum etching antenna
Craft 4C offset print, Silk screen print, Inkjet print,Foil stamp, Encoding, Punch hole, Epoxy surface
● Performance parameters
Chip	EM4200, HT4168, T5577, S50 / S70, Ultralight EV1 / Ultralight C, NTAG213 / 216, I CODE SLIX, FM1108, Desfire2K / 4K / 8K
Storage	Related to the chip	Operating mode	Can read and write
Data retention	> 10 years
Endurance	100,000 times
Reading distance	0-5cm (the reading range is related to the working condition and reader)
● Environmental parameters
Operating temperature	(-25 ℃ ~ + 55 ℃)
Storage temperature	(-35 ℃ ~ + 75 ℃)
● Typical applications
Applications	Identification, time and attendance systems, access control systems, personnel management, accounting management, etc.
● Package
Packaging Information	flexible packaging
