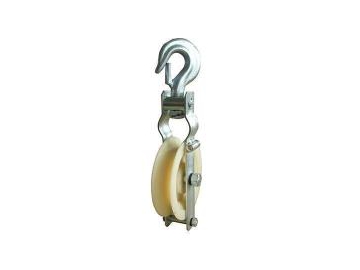

Single Sheave Stringing Block
Our single sheave stringing block is divided into hook, clevis, and other types. The specified type must be clearly indicated in the order form. We can customize the product with special specifications. In the following table, the data of model refers to the outer diameter of sheave × width of sheave (mm).
Technical Parameters
| Item Number | Model | Suitable Conductor | Rated Load (kg) | Weight (kg) | Remark |
| 10171 | SHD-120×30 | LGJ25~70 | 5 | 1.5 | Aluminum sheave |
| 10172 | SHD-160×40 | LGJ95~120 | 10 | 2.5 | |
| 10173 | SHD-200×40 | LGJ150~240 | 15 | 4 | |
| 10174 | SHD-200×60 | LGJ150~240 | 15 | 4.6 | |
| 10176 | SHD-250×60 | LGJ300~400 | 20 | 6 | |
| 10178 | SHD-320×60 | LGJ300~400 | 20 | 9.5 | |
| 10179 | SHD-400×80 | LGJ400~500 | 20 | 15 | |
| 10191 | SHDN-120×30 | LGJ25~70 | 5 | 1.5 | Nylon sheave |
| 10192 | SHDN-160×40 | LGJ95~120 | 10 | 2.5 | |
| 10193 | SHDN-200×40 | LGJ150~240 | 15 | 3.6 | |
| 10194 | SHDN-200×60 | LGJ150~240 | 15 | 4 | |
| 10196 | SHDN-250×60 | LGJ300~400 | 20 | 4.5 | |
| 10197 | SHDN-270×60 | LGJ300~400 | 20 | 5.6 | |
| 10198 | SHDN-320×60 | LGJ300~400 | 20 | 6.7 | |
| 10199 | SHDN-400×80 | LGJ400~500 | 20 | 13 |
