Alloy Steel Double Clevis Link
Features
● It is a product of G70. So it can only be used for lashing and pulling. It can never be used for lifting!
● It is forged by alloy steel. The strict heat treatment ensures the intensity and toughness.
● It can be matched with G70 chains.
● Ultimate load is 4 times the Working Load Limit.

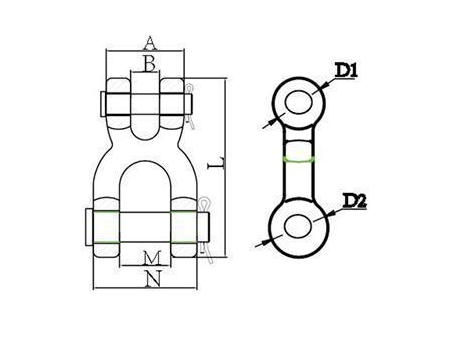

| Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±1.5 | B±1 | M±1 | N±1.5 | L±2 | D1 | D2 |
| SLR-356-1/4 | 0.17 | 1.18 | 4.72 | 32 | 13.2 | 19.5 | 37.5 | 72.5 | 20.6 | 25.4 |
| SLR-356-5/16-3/8 | 0.37 | 2.45 | 9.8 | 39.5 | 14.7 | 26 | 52.5 | 90.7 | 25 | 30 |
| SLR-356-7/16 | 0.57 | 3.17 | 12.7 | 44 | 18 | 29 | 57.5 | 104 | 30 | 33 |
| SLR-356-1/2 | 0.71 | 4.17 | 16.7 | 51 | 21 | 32.3 | 63.5 | 116 | 33 | 37 |
| SLR-356-5/8 | 1.3 | 7.94 | 31.8 | 56.8 | 19.8 | 41.4 | 81 | 144 | 41 | 47 |
