LCK5041XJH5 negative pressure ambulance is an emergency medical vehicle modified by Zhongtong based on middle axle high roof light-duty passenger car. It features an exterior height of 5.9m and an interior height of 1.9m, ensuring spacious interior space. This ambulance is equipped with RA428Q150E50 diesel engine and 6-speed manual transmission, with speed up to 130km/h. After modification, the ambulance comes with alarm system, electrical system, negative pressure system, ambulance system, etc., which can be widely used for pre-hospital rescue, patient transfer and infectious patient monitoring.

1. Excellent Exterior Design, Spacious Interior for Optimum Comfort
The negative pressure ambulance features a simple and modern design in appearance. The car lights are perfectly integrated in the car body. The ambulance comes with an interior in 1.9m height, making you stand freely without trouble.

2. Strong Power System
The ambulance is equipped with powerful 2.8T WEICHAI RA428Q150E50 diesel engine and 6-speed manual transmission, with speed up to 130km/h.

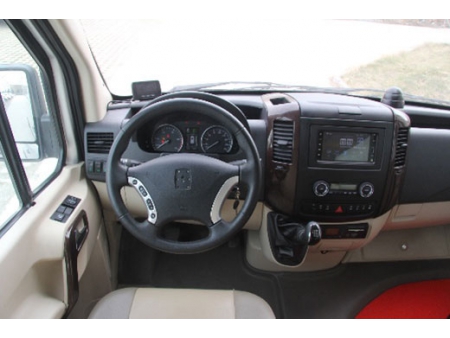

3. Comfortable Driving Experience
Easy operation and control is realized due to the halogen headlights, ergonomically designed driver cab, 8-way adjustable seat, 4 spoke steering wheel and intelligent LCD instrument.

4. European Levels of Security and Protection
The high protection and security level is ensured because of high-strength steel welded vehicle body and various protection systems, including reversing radar system, reversing camera system and ESC. Both active and passive protection makes you worry-free throughout the journey.

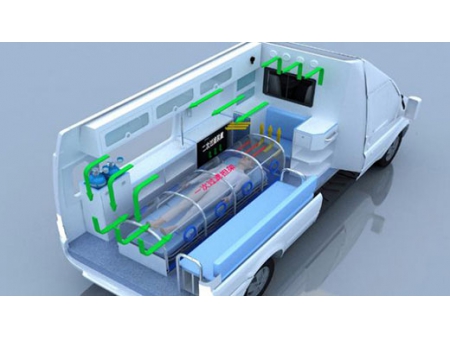

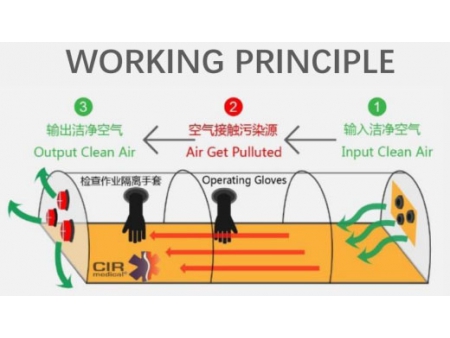

5. High Degree of Negative Pressure Protection
The isolation stretcher comes with a negative pressure isolation and transport chamber to avoid the spread of pathogens. Due to the negative pressure device, the polluted cabin air can be expelled after high efficiency filtration and disinfection, causing no contamination to the external air. The fresh air system is adopted to provide continuous fresh air replenishment in the medical cabin, minimizing the risk of infection of medical staff.

6. High Capacity Oxygen System
2*10L Oxygen cylinder is equipped at the rear of the vehicle for easy replacement. The head section of the isolation stretcher is equipped with two oxygen connectors, which are a ventilator connector and an oxygen supply connector to provide sufficient oxygen supply for patient rescue in a convenient manner.

7. Stable Power Supply
The negative pressure ambulance is equipped with an external charging interface 180A generator 100Ah maintenance free battery 1kW inverter charger to provide stable and sufficient power supply. This makes the medical equipment work in a continuous manner.

8. High Brightness Light Alarm System
The blue LED strobe light with high brightness is adopted in the ambulance. 100W High volume alarm system is available with several alarm sounds.

9. Hygienic Interior Decoration
The integrally molded wall panel is resistant to water, fire and corrosion, providing interior environmental hygiene in a high level.

10. Multi-Functional Visual Storage Cabinets
The medical cabin is equipped with multi-functional visual storage cabinets made using waterproof, fireproof and corrosion resistant material. The cabinets are used for storing medical equipment and medicine. With visual design on the cabinets, convenient visibility is achieved, saving time during the patient rescue.

11. Safe and Convenient Benches
The benches are equipped around the medical stretchers. Adopting three-point seatbelt provides great protection of medical personnel and patients. Made using leather and sponge, great comfort is ensured when sitting on the bench.

12. Air Conditioning system for Ultimate Temperature Control
The medical cabin is designed with independently controlled air conditioning system and heating & cooling system to realize convenient temperature adjustment, providing a medical environment with great comfort.
