Oxygen Filling System

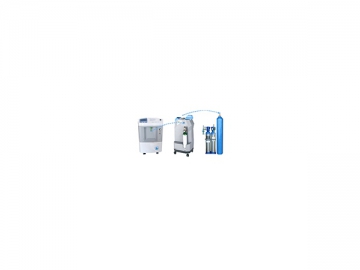

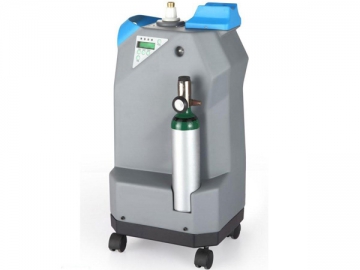

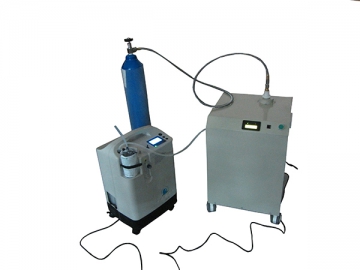

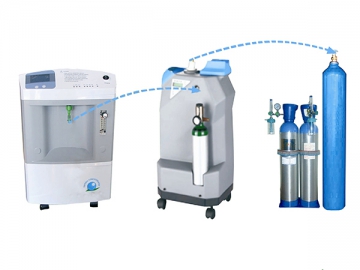

The oxygen filling system consists of a high pressure oil-free compressor and a PSA oxygen concentrator. Through the compressor, the oxygen generated by the concentrator will be filled into different size of oxygen cylinders. By using this oxygen filling equipment, you can generate and store oxygen whenever and wherever you like.
Application
This oxygen filling system can used for medical, homecare, industrial and other applications where delivery of oxygen cylinders is not convenient. It is especially suitable for EMS oxygen supply for life rescue in disaster areas as well as health care in underground or plateau areas with low oxygen concentration.
Features
1. Absolutely dry, clean and oil-free.
2. High compression ratio. The service pressure is up to 138bar (2000psi/13.8Mpa)
3. Efficient filling. It takes about 6 hours to fill a M265 10-liter oxygen cylinder using our oxygen filling system.
4. Small size and light weight. Easy and safe to operate.
5. Simple, reliable and easy maintenance.
6. High flexibility. This oxygen filling equiment can be used separately or expanded into a larger system through parallel connection to meet the demand for large amount of oxygen consumption.
7. Energy-saving. Our oxygen filling device has low power consumption.
8. Cost-effective.
Parameters of Oxygen Concentrator of the Oxygen Filling System
| Model | ||
| Rated power (VA) | 550W | 1100W |
| Operation voltage (V/Hz) | AC230V (± 10%); 50Hz (±1Hz) | |
| Oxygen flow (L/min) | 0-10 | 0- 20 |
| Oxygen concentration | 93% (± 3% ) | |
| Outlet pressure (Mpa) | 0.04-0.07 | |
| Alarm | Power failure; low/high pressure; temperature (optional); low concentration (optional); maintenance reminding after 3000 hours' operation (optional) | |
| Noise level (dB) | ≤ 55 | ≤ 55 |
| LCD display | Accumulating timing; present timing; timing; | |
| Large LCD display (optional) | Pressure indication (accuracy: 0.001MPa); Accumulated working time (range: 0-10000hours); Present working time (accuracy:1 minute); Preset time (accuracy: 1 minute) Optional: temperature indication (accuracy: 0.1); Oxygen concentration indicationMaintenance reminding | |
| Electrical safety classification | Class II Type B | |
| Product category | Class II a | |
| Net weight (kg) | 28 (plastic shell)/30 (iron shell) | 60 |
| Dimension (mm) | 365×375×600 ( plastic shell)380×380×560 (iron shell) | 700×390×530 |
| Low purity alarm (Optional) | When oxygen concentration is 85% or above, the green lamp is on; when oxygen concentration isbelow 85%, the red lamp is on, indicating low concentration | |
| Fuse | F7A/250V | |
| Electrical requirement | C150-500 | C150-800 |
| Power consumption | 500W on average | 1000W on average |
| Inlet pressure | 6-20psi (0.04-0.01Mpa) | 6-20 psi (0.04-0.01Mpa) |
| Max. discharge pressure | 2000psi (13.8Mpa) | 2000psi (13.8Mpa) |
| Flow rate | 5-10LPM | 15-20LPM |
| Machine dimension (W×D×H) | 38cm×62cm×63cm | 38cm×62cm×63cm |
| Net weight | 52.5kg | 64kg |
| Operating temperature | 5℃-35℃ |
| Operating humidity range | 15-95%RH (No condensation) |
| Operating altitude | 0-2000m |
| Storage temperature range | -40℃ - 70℃ |
| Storage humidity range | 10%-95%RH (No condensation) |
| Working voltage | 115V±10% /60Hz (230V±10%/50Hz) |
| Power | 700W on average |
| Classification | CategoryⅡ Model B |
| Inlet airflow | 5-10LPM |
| Inlet pressure | 7-15psi |
| Filling pressure | 0psi-2000 (±200psi) |
| Dimension (L×W×H) | 510mm×510mm×800mm |
| Weight | About 60kg |
| Cylinder model | Cylinder capacity | Oxygen storage | Air flow | Input air pressure | Output air pressure | Cylinder filling time | ||
| L | L | LPM | psi | Mpa | psi | Mpa | ||
| M004 | 0.7 | 98 | 10/20 | 15/20 | 0.1/0.14 | 2000 | 13.8 | 12L: 5mins |
| M006 | 1.0 | 140 | 10/20 | 15/20 | 0.1/0.14 | 2000 | 13.8 | 16L: 7mins |
| M009 | 1.7 | 238 | 10/20 | 15/20 | 0.1/0.14 | 2000 | 13.8 | 25L: 12mins |
| M265 | 40 | 6800 | 10/20 | 15/20 | 0.1/0.14 | 2000 | 13.8 | <12L: 6hours |
