Subsoiler

: http://farm-harvester.com/5-subsoiler.html

Description

Our subsoilers are equipped with a spiked leveling roller with adjustable height, making soil leveling extremely easy. The subsoiler shanks have a unique angle, which results in low power consumption, small working resistance and high working efficiency.

Parameters

Item	Unit	1S-200	1S-264	1S-300
Overall size (L×W×H)	mm	283823721603	283827301603	283832501603
Weight	kg	1330	1360	1730
Working width	mm	2000	2640	3000
Working depth	mm	300-400	300-400	300-400
Quantity of subsoiling tip	pc	5	5	7
Row spacing	mm	400	500/575	440
Matched power	kw/hp	≤70/95	≤88/120	≤88/120
Working efficiency	ha/h	0.8-1	0.8-2	1.33-3

Features

The main parts of this subsoiler adopt Q345 high quality alloy engineering steel, which has good toughness, high strength and a small plastic deformation coefficient. So this machine is firm, reliable and durable.

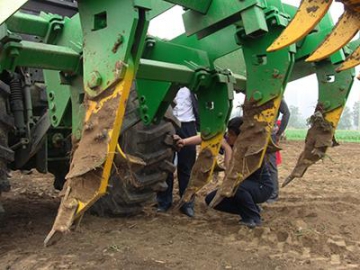

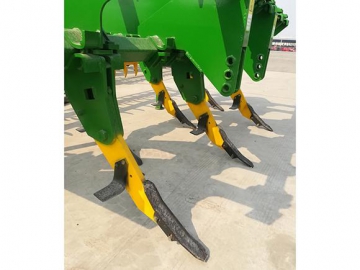

The subsoiler shank with unique angle, together with unique combined subsoiler tip structure of main tip and double winged tip, makes this machine of low power consumption, small working resistance and high working efficiency.

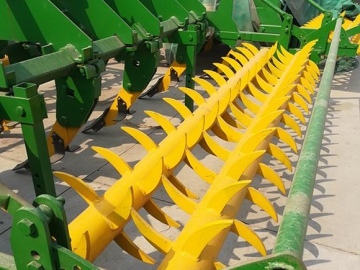

The height of sparked leveling roller is adjustable, which is convenient for land leveling.
The safety bolt installed on the subsoiler beam can protect the subsoiling tip from damage when encountering with large obstacles like tree root or stone during the tillage.
The whole machine features a compact structure and reasonable design.
