Tea Bag Packing Machine

: http://printingmachinecn.com

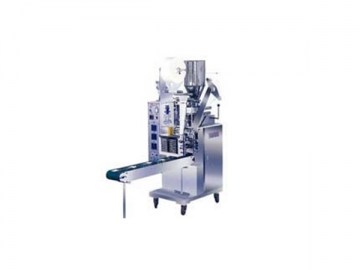

1. Tea Bag Packing Machine YD-11

Descriptions of Tea Bag Packing Machine YD-11
It is able to automatically finish the process of bag making, measuring, filling, cutting, sealing and counting. It has special device for hang thread and label.

Applications Tea Bag Packing Machine YD-11
The machine can be used for packing tea, coffee, herb medicine and plant etc.

Packaging Material Tea Bag Packing Machine YD-11:
Filter cotton paper, cotton thread, label paper (plastic coated paper)
Technique Performance of Tea Bag Packing Machine YD-11
Measuring Method: by cubage
Measuring Range: 3-10ml, about 1-5g tea
Bag Size: W: 45-80mm
Packing Speed: 30-60Pieces/ Min
Weight: 350kg
Power Supply: 220V 50HZ
Total Power: 1.6KW
Control System: about 40W

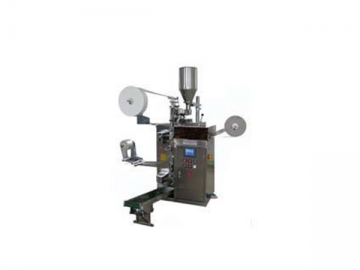

2. Tea Bag Packing Machine YD-18-2

Descriptions of Tea Bag Packing Machine YD-18-2
This machine is able to put the substance in inside bag first, then put the inside bag in outside bag for packing both of the bags at the same time.

Packaging Material of Tea Bag Packing Machine YD-18-2
Filter cotton paper, cotton thread, label paper and aluminum foil.

Technique Parameter of Tea Bag Packing Machine YD-18-2
Outside Bag: Width: 70-90 mm, Length:80-120mm
Inside Bag: Width: 50-80mm, Length: 50-70mm
Label Width 40-55mm,
Label Length:20-40mm
Thread Length: 155mm
Packing Speed: 30-40Pieces/ Min
Measuring Range: 3-15ml
Power Supply: 220v3kw
Weight: 500kg
Dimension: 900×610×1500mm
