Aircraft water trucks are a self-propelled piece of airport equipment used to provide clean water to an aircraft. It is usually used in Airbus A300, A310, A320, A330, A340, Boeing B727, B737, B747, B767, B777 and COMAC C919 aircraft types.

The lifting platform features a high strength and outstanding plasticity, due to its aluminum alloy material. The platform lifting range is 400 to 2800mm, which meets the working height of most existing aircraft. All operation switches, plugs and circuit boards are waterproof, and the truck is comprised of an ISUZU second class truck chassis refitting assembly, water tank installation assembly, rear -overhang assembly (lifting platform), hydraulic system, electrical systems and other components.

Feature of Water Truck
  • Chassis
    The water truck features a strong carrying capacity and excellent controllability, thanks to its usage of a second class truck chassis, such as JMC or ISUZU.
  • Hydraulic System
    The hydraulic system is composed of power takeoff, power takeoff control mechanism, hydraulic tank, filter, gear oil pump, hydraulic motor, solenoid valve and hydraulic pipeline, all in order to carry out water supply through the control of the electric system.
  • Water Pipeline System
    The water pipeline system is equipped with a safety pressure regulator, which can adjust the water pressure according to actual usage conditions.
  • Water Tank
    1)The water tank shell is easy to clean and corrosion resistant. 0Cr18Ni9 stainless steel heat-resistant steel and argon arc welding are used, and the material thickness is 3mm.
    2)There are 3 mm thick molded stainless steel boards inside the tank to avoid sloshing after adding water. These boards are firmly welded to ensure a tight seam and easy to clean surface.
    3)The water tank can be turned into an insulation water tank based on the needs of different customers in different areas of the world.
    4)The water tank and the truck frame are connected and attached using a rubber pad, which reduces the truck vibration while moving.
Technical Specifications of Water Truck
Parameter Configuration 1 JMC/GB 4/3 m³/MT Configuration2 JMC/GB 4/3 m³/MT Configuration3 600p/GB 5/4 m³/MT Configuration4 700p/GB 4/4 m³/MT Configuration 5 700p/GB 5/4 m³/AT
Water Tank Volume 2700L 3000L 4000L 4000L 4000L
Water Flow 136L/min 136L/min 150L/min 150L/min ≥150L/min
Water Pressure 0.44Mpa 0.44Mpa 0.3~0.5Mpa 0.3~0.5Mpa 0.3~0.5Mpa
Curb Weight 2940kg 2950kg 3450kg 4600kg 4600kg
Boundary Dimension (Length x Width x Height) 5960X1880X2140 mm 6560X1900X2100 mm 6900x2100x2160 mm 7310x2200x2360 mm 7320x2170x2410 mm
Maximum Speed 40km/h 40km/h 80km/h 80km/h 80km/h
platform Lifting Height 400-2800mm 400-2800mm 400-2800mm 520-2800mm 520-2800mm
Ground Clearance 200 200 180 180 180
Water Tank Material/Thickness S31603/3mm S31603/3mm S31603/3mm S31603/3mm S31603/3mm
Channel Circular Diameter 12800mm 12800mm 15600mm 17000mm 17000mm
Engine (Manufacturer /Model) JiangLing Engine Co , Ltd/JX493ZLQ4 JiangLing Engine Co , Ltd/JX493ZLQ5 ISUZU(ChongQing) Engine Co., LTD/KH1CN5HS ISUZU(ChongQing) Engine Co., LTD/ KH1CN5HS ISUZU(ChongQing) Engine Co., LTD/4KH1-TC51
Engine Power 80KW 85KW 96KW 141KW 14KW
Engine Emission GB 4 GB 5 GB 4 GB 4 GB 5
Underpan(Manufacturer /Model) JiangLing Motor Co., LTD/ JX1040TG24 JiangLing Motor Co., LTD/ JX1062TPG25 QingLing Motor Co., LTD/ QL1070A5KAY QingLing Motor Co., LTD/ QL11009KARY QingLing Motor Co., LTD/L1100A8PAY
Underpan Wheel Base 3360mm 3360mm 3815mm 3815mm 3815mm
Gearbox Model/ Gear Model JC528T8(5 Forward Gear 1Reverse Gear ) JC528(5 Forward Gear 1Reverse Gear ) MSB-5SM(5 Forward Gear 1Reverse Gear ) MLD-6Q(5 Forward Gear 1Reverse Gear ) ALLISON1000 /AT
Parts of Water Truck

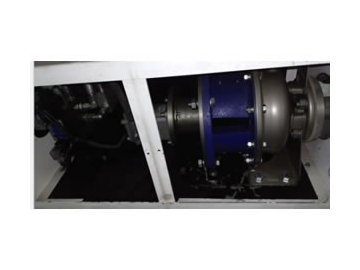

  • The imported hydraulic valve unit controls the motor to make the stainless steel centrifugal pump work

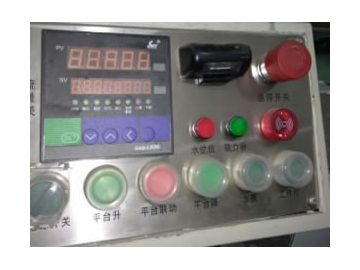

  • Control system (including electronic flow-meter)

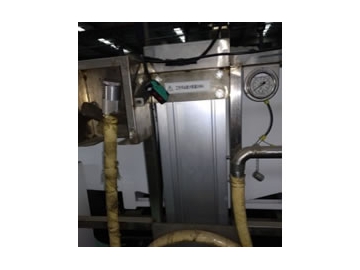

  • Rear lifting platform

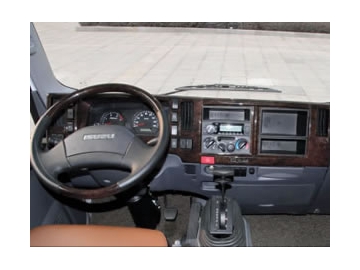

  • The 700P GB 5 automatic cab has large space and comfortable operation. It can also be equipped with tachographs, move backward image, radar and so on
