Aluminum Alloy and MC Nylon Sheave Hoisting Tackle Manufacturer

Aluminum Alloy and MC Nylon Sheave Hoisting Tackle

: http://eastpowermachinery.com/6-1-aluminum-alloy-hoisting-tackle.html

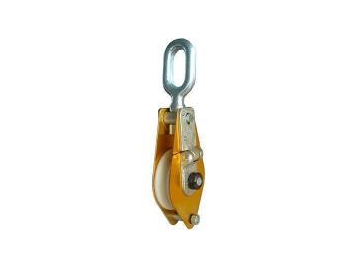

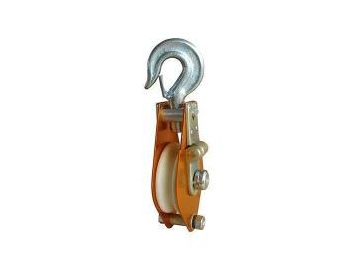

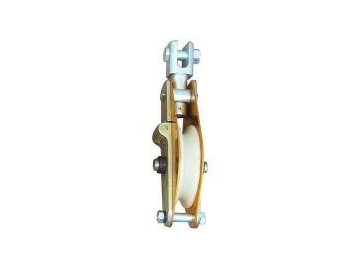

This aluminum alloy and MC nylon sheave hoisting tackle possesses light dead weight, which is equipped with the aluminum alloy side panel and the MC nylon sheave. This single sheave pulley block is the open type. Our product can be used for lifting heavy objects and other operations in the line construction.

Main Specifications

Item Number	Model	Number of Sheave	Rated Load (kN)	Outer Diameter of Sheave ×Sheave Width (mm)	Rope Diameter (mm)	Weight (kg)	Hoisting Point Type
11101	QHN1-1K	1	10	Φ100×31	Φ7.7	1.8	G	H
11102	QHN1-2	2	10	Φ80×27	Φ6	1.8	G	H
11103	QHN1-3	3	10	Φ80×27	Φ6	2.1	G	H
11111	QHN2-1K	1	20	Φ120×35	Φ9.3	2.2	G	H	B
11112	QHN2-2	2	20	Φ100×31	Φ7.7	2.6	G	H
11113	QHN2-3	3	20	Φ100×31	Φ7.7	3.7	G	H
11121	QHN3-1K	1	30	Φ150×39	Φ11	3.4	G	H	B
11122	QHN3-2	2	30	Φ120×35	Φ9.3	4.5	G	H
11123	QHN3-3	3	30	Φ100×31	Φ7.7	4.6	G	H
11131	QHN5-1K	1	50	Φ166×40	Φ13	5.2	G	H	B
11133	QHN5-2	2	50	Φ150×39	Φ11	5.5	G	H
11134	QHN5-3	3	50	Φ120×35	Φ9.3	5.1	G	H
11141	QHN8-1K	1	80	Φ205×49	Φ17	7.2	G	H	B
11142	QHN8-2	2	80	Φ166×40	Φ13	8.3	G	H
11143	QHN8-3	3	80	Φ150×39	Φ11	7.9	G	H
11151	QHN10-1K	1	100	Φ246×60	Φ18.5	11.4	G		B
11152	QHN10-2	2	100	Φ166×40	Φ13	10.2		H
11153	QHN10-3	3	100	Φ150×39	Φ11	11.7		H
11161	QHN15-1K	1	150	Φ280×65	Φ21.5	12.1			B
11162	QHN15-2	2	150	Φ205×49	Φ17	12.8		H
11163	QHN15-3	3	150	Φ166×40	Φ13	11.8		H
11164	QHN15-4	4	150	Φ150×39	Φ11	13.9		H
