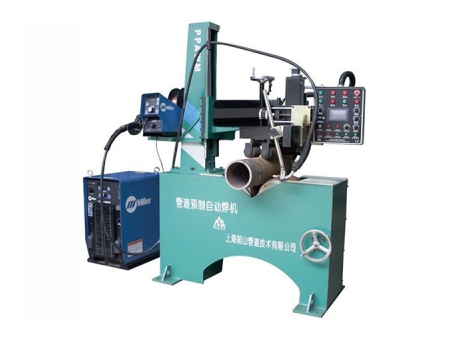

Automatic Welding Machine for Pipe Spool Root Pass Weld (GMAW/GTAW/FCAW)
Model: PPAWM-24Aa/24Cb
Technical Parameters- Pipe Diameter Applicable: DN50-600 (φ60-610)
- Pipe Wall Thickness Applicable: 3-30mm
- Pipe Length Applicable: 400-8000mm (for pipe dia ≤400 mm, adopt to auxiliary method to welding)
- Applicable Materials: Carbon steel, alloy steel , stainless steel and cryogenic steel
- Welding Line Applicable: Various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc. (a fake pipe transition connection shall be applied if necessary)
- Clamping System: Clamping arm move up and down by screw
- Control System: PLC control and indication by text display
- Oscillating Mode: Adjustment by electric cross oscillator , drive by step motor
- Adjustment Mode: Welding swing, swing around the frequency and left and right pause time, etc. by electric cross oscillator to adjustment of stepless
- Adjustment Way: Swing parameter (welding swing, swing frequency and left and right pause time) use to button digital display adjust way
- Adjustment Mode: Work piece rotation variable frequency, stepless adjustable (stable), cross arm stretch the length of electrical, stepless adjustable
- Adjustment Way: Work piece Rev speed/welding speed adjustment using knob digital way, cross arm of extending length of use of buttons

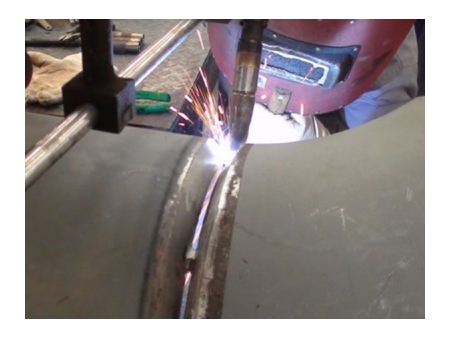

- Welding Procedure: FCAW/GMAW/GTAW welding process for root pass welding
- Welding Power: OEM products in China (or as per customers' demands)
