Self-Propelled Telescopic Boom Lift, HT200/HT215J
Self-Propelled Telescopic Boom Lift HT200/HT215J
Video
Mantall HT200/HT215J self-propelled telescopic boom lifts are designed to lift heavy loads of 230kg to working heights of up to 21.5m, and provided with a large platform that can accommodate up to three workers with tools. The extended outreach and 360-degree turntable rotation offer excellent flexibility for difficult jobsite applications. The self-propelled telescopic boom lift can perform various lifting tasks in limited spaces and is able to accommodate various rough terrains thanks to the variable modes of traveling speed.
Standard Features
- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- 360° Turntable rotation
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
- Engine restart protection
- Automatic engine failure shutdown
- Spin out engine tray
Optional
- Platform swing gate
- Platform alternate leverage
- Welder connecting packages
- Welder wire connecting to the platform
- Airline to platform
- Hydraulic oil cooler
- Hydraulic oil for extremely cold areas
- Pipeline for extremely cold area
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
- Front driving light
- Traction packages
- AC power source
- Preheater
- Cold start components
- AC generator set
- Diesel exhaust gas purification muffler
- Diesel fireproof star silencer
- Air pre filter
Specifications
| Models | HT200 | HT215J |
| Max. working height m | 20m | 21.5m |
| Max. platform height m | 18m | 19.5m |
| Max. outreach m | 13.4m | 14.65m |
| Max. lift capacity kg | 230kg | 230kg |
| Platform size B*C*A | 1.8*0.76*1.1m | 1.8*0.76*1.1m |
| Height-stowed D | 2.5m | 2.5m |
| Length-stowed E | 9.5m | 10.6m |
| Width F | 2.5m | 2.5m |
| Wheelbase G | 2.8m | 2.8m |
| Ground clearance H | 0.3m | 0.3m |
| Turntable rotation | 360° | 360° |
| Turntable tailswing | 1.2m | 1.2m |
| Platform rotation | 180° | 180° |
| Jib swing | / | 130°( 75°/-55°） |
| Drive speed, stowed | 5.1km/h | 5.1km/h |
| Drive speed, raised | 1km/h | 1km/h |
| Gradeability (4WD) | 45% | 45% |
| Min. turning radius-(inside) | 2.9m | 2.9m |
| Min. turning radius-(outside) | 6.15m | 6.12m |
| Drive wheels number | 4 | 4 |
| Steering wheels number | 2 | 2 |
| Controls | Electro hydraulic proportional control | Electro hydraulic proportional control |
| System voltage | DC 12V | DC 12V |
| Hydraulic tank capacity L | 150L | 150L |
| Fuel tank capacity L | 100L | 100L |
| Tire size | 36*14-20; Rubber solid tires | 36*14-20; Rubber solid tires |
| Power | Cummins engine QSF2.8T3 43kw | Cummins engine QSF2.8T3 43kw |
| Total weight(4WD) kg | 9375 | 9510 |
Working Heights

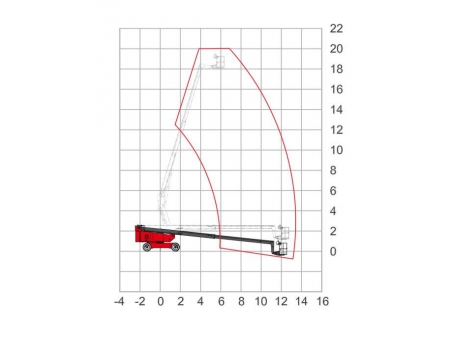

- HT200

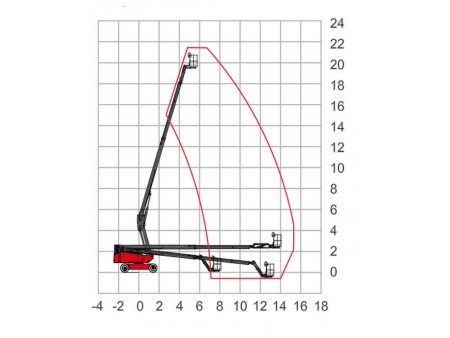

- HT215J
Stowed Dimensions
HT200 HT215JRelated products
