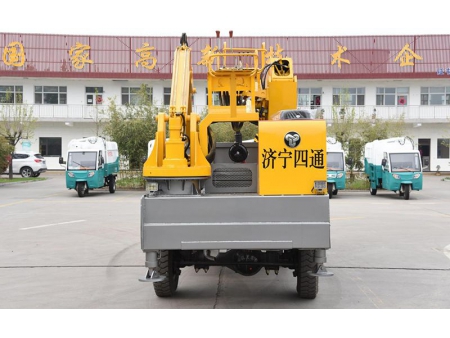

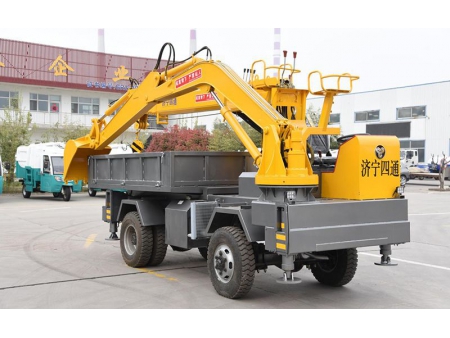

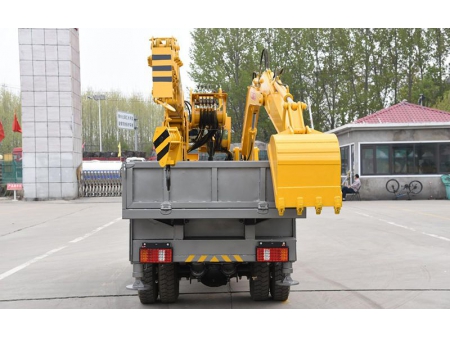

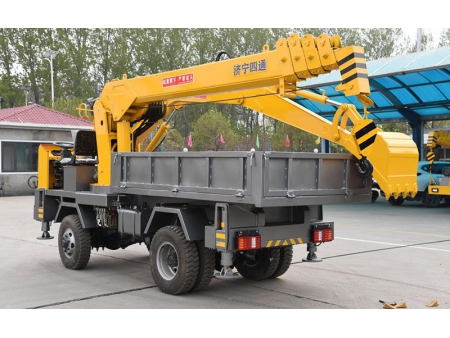

6T Multifunction Dumper, STSC-6
STSC-6 multifunction dumper is a versatile vehicle that combines telescopic boom and excavator bucket, with a loading capacity of up to 6 tons. It adopts our independently developed chassis that features compact structure and small turning radius. The telescopic boom can be extended to its maximum length of 10m, it is equipped with horizontal supporting cable and 360-degree rotating platform. The excavator bucket has a capacity of 0.12m³ and a digging depth of 3m.
Feature- Adopting Changchai 490 engine, providing large torque at low speed, stable performance and improved climbing ability;
- Wider steering range implies a smaller turning cycle, making the multifunction dumper ideal for limited spaces, small slopes and narrow access points;
- Self loading and unloading of materials;
- High digging efficiency and powerful lifting performance;
Specification
- Max. loading capacity
- 6t
- Bucket capacity
- 0.12m³
- Truck bed size
- 3m*2m*0.5m
- Max. lifting height
- 10m
- Boom
- 4 sections (3.5m per section)
- Max. digging depth
- 3m
- Drive
- 4*4 drive
- Engine model
- Changchai 490
- Tyres
- 750-16
