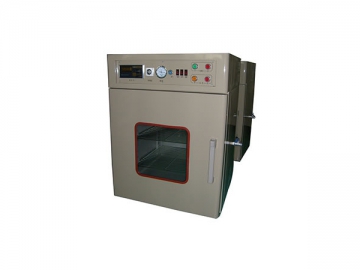

Vacuum Oven especially used for Photoelectric
This series of vacuum ovens are specially designed for photoelectric components, and features a square vacuum chamber, giving it a number of advantages over traditional vacuum ovens. The square chamber takes up the full room, and the door will automatically be sucked down in place when closed, requiring users to just pump the vacuum. This improves the pumping speed, with a vacuum degree reaching 100Pa. Release valves are installed on the front door in the middle and on the right, making it easy to quickly or slowly release the air. This product series is available for vacuum drying during the production process for different electronic products, such as LED photoelectric components and crystal oscillators.
Parameters| Model | Voltage (V) | Heating Power (kw) | Temperature Range (℃) | Vacuum Degree (Pa) | Air Leakage (kPa/h) | Internal Dimensions (H*W*D)(cm) |
| SLED-0 | 380 | 1.5 | 0~200 | 100 | ≤1 | 35*35*32 |
| SLED-1 | 380 | 3 | 0~200 | 45*45*45 | ||
| SLED-2 | 380 | 6 | 0~200 | 60*62*65 |
