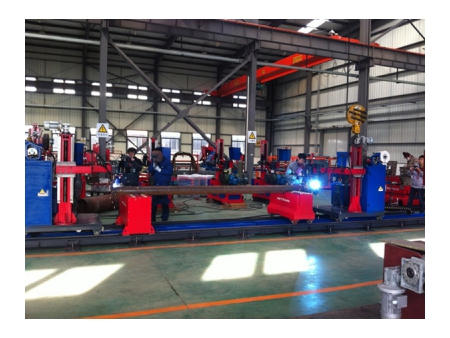

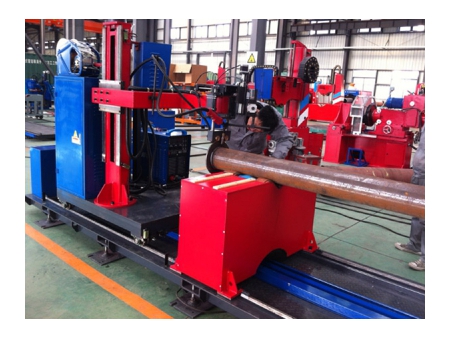

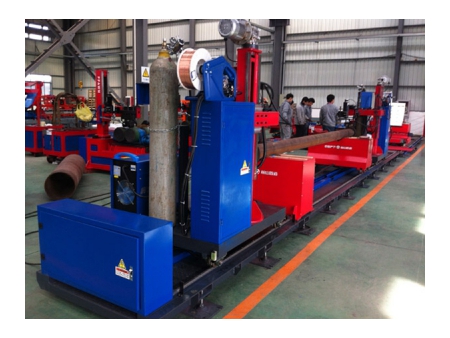

Automatic Slip-On Flange Welding Machine (FCAW/GMAW)
Model: PPAWM-24Da/32Da
Technical Parameters- Pipe Diameter Applicable: DN100-600(φ114-610)/DN100-800(φ114-813)
- Pipe Wall Thickness Applicable: 3-30MM
- Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
- Welds Applicable: Welding line of flange pipe
- Machine Head System: One welding head with two welding guns at one end/two welding heads with four welding guns both at two ends
- Driving System: Driven the motor of active idler wheel frame
- Clamping System: Clamped by chain or contact roller
- Bracket System: Two sets of active idler wheel frame are to be set and it is adjustable according to the pipe length along the track
- Speed Regulation Mode: VF stepless speed control system
- Adjustment Mode: Electric cross regulator
- Swaying System: A product of our patented technology, driven by step motor and oscillating adjusting with digital display
- Control System: A product of our patented technology, PLC control
- Welding Procedure: FCAW/GMAW (or as per request)
- Welding Power: OEM products in China (or as per customers' demands)
Applications
Slip-on flange for the welding of the internal and external incidence angle.
- The automatic slip-on flange welding machine offers excellent welding capacity (250-350 inch/day).
- The machine is easy to operate.
- The automatic slip-on flange welding machine offers excellent surface forming.
- It offers a welding compliance rate (without re-working for the skilled operator).
- The automatic slip-on flange welding offers good driving reliability.
