EME02 Carbide, 2 Flute Square End Mills with Long Neck

EME02 Carbide, 2 Flute Square End Mills with Long Neck
EME02 Carbide, 2 Flute Square End Mills with Long Neck
EME02 Carbide, 2 Flute Square End Mills with Long Neck
: http://metalworking-tool.com/6-2-eme02-2-flute-carbide-end-mills.html

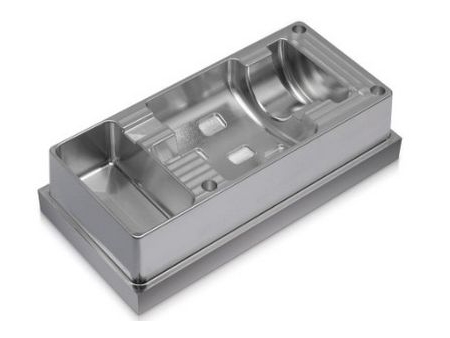

  • Designed to machine aluminum alloy, copper alloy, graphite, resin and non-ferrous material
  • Features excellent surface finishes, superior chips ejection and long tool life
  • High-quality aluminum milling cutters are available with TiN, TiCN & TiAIN coating upon request
  • Center & slotting cutting
Application
Product Specifications
Coating Non-Coated or TiN, TiCN & TiAIN Work Material Aluminum Alloy / Copper Alloy / Graphite / Resin
Helix Angle 45° Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide 2 Flute End Mill, 45° Helix, Long Length – Slotting (UNT-EME02)
Unit: mm
UNT EDP # Click to Order Mill Dia.
D1 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EME02010075 1.0 4 5 75 2
EME02015075 1.5 4 6 75 2
EME02020075 2.0 4 8 75 2
EME02025075 2.5 4 8 75 2
EME02030075 3.0 4 10 75 2
EME02040075 4.0 4 12 75 2
EME02050075 5.0 6 16 75 2
EME02060075 6.0 6 25 75 2
EME02060100 6.0 6 30 100 2
EME02080100 8.0 8 35 100 2
EME02100100 10.0 10 40 100 2
EME02120100 12.0 12 45 100 2
EME02160150 16.0 16 70 100 2

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
