Our multi-functional microphone mixer is a live sound mixing device. It can fit multiple inputs of various microphones. The unique preamplifier circuit helps ensure good quality of sound and acoustic fidelity. The advanced digital reverb is more attractive to the audience. Several microphone mixers can be used together for better results.

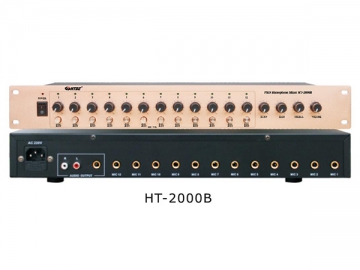

Technical Specifications of the HT-2000A, HT-2000B Pro Microphone Mixer

Model No. HT-2000A HT-2000B
Input Power AC 220V 50Hz AC 220V 50Hz
Compatible Microphone without phantom power 48V Microphone without phantom power 48V
Connection Type φ6.35×12 φ6.35×12
N.W. 1.84kg 2.5kg
Dimension (L ×W×H)mm 480×175×44 480×175×62
Input Type Microphone φ6.35 Microphone φ6.35
Output Type RCA RCA
Consumption 5W 5W
Switcher/Indicator
Mute switch and indicator of each channel

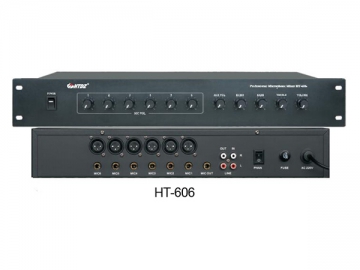

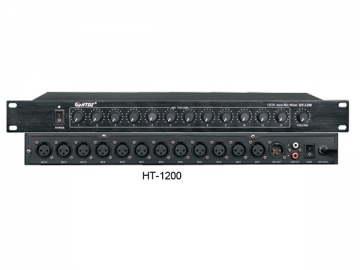

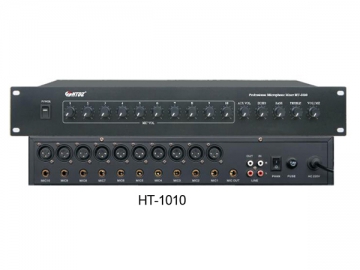

Technical Specifications of the HT-1010, HT-606, HT-1200 Pro Microphone Mixer

Model No. HT-1010 HT-606 HT-1200
Input Power AC 220V 50Hz AC 220V 50Hz AC 220V 50Hz
Output Power Phantom power 48V Phantom power 48V Phantom power 48V
Output Current 6.5mA 6.5mA 6.5mA
Compatible Microphone with/without phantom power 48V Microphone with/without phantom power 48V Phantom power 48V microphone
Connection Type φ6.35×10 XLR×10 φ6.35×6 XLR×6 XLR×12
N.W. 3.03kg 2.94kg 2.10kg
Dimension (L ×W×H)mm 480×178×71 480×178×71 480×205×44
Input Type φ6.35/XLR/RCA φ6.35/XLR/RCA XLR
Consumption 12W 10W 10W

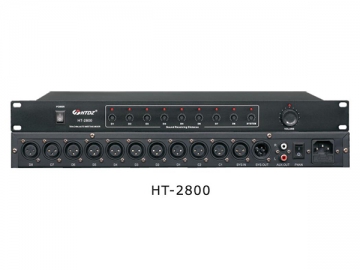

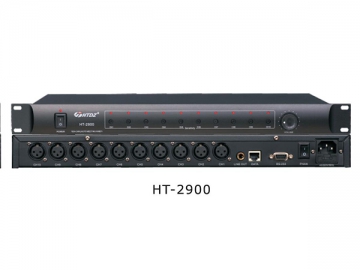

Technical Specifications of the HT-2800, HT-2900 Pro Microphone Mixer

Model No. HT-2800 HT-2900
Input Power AC 220V 50Hz AC 220V 50Hz
Output Power Phantom power 48V Phantom power 48V
Output Current 6.5mA 6.5mA
Compatible Microphone without phantom power 48V Microphone without phantom power 48V
Connection Type XLR×10 XLR×10
N.W. 2.72kg 2.75kg
Dimension (L ×W×H)mm 480×205×44 480×205×44
Input Type XLR XLR
Output Type RCA/XLR φ6.35/XLR
Consumption 12W 12W
Features Chairman Mic×2
Delegate Mic×8
Voice control
Delegate Mic×10
Voice control
Video camera auto-track

As a professional microphone mixer manufacturer based in China, we provide a wide range of products, including microphone equipment, voting system, digital video conference system, IR wireless language distribution system, and so on.
