Self-Propelled Telescopic Boom Lift, HT270/HT285J
Self-Propelled Telescopic Boom Lift HT270/HT285J
Video
Mantall HT270/HT285J self-propelled telescopic boom lifts are engineered to enhance working efficiency with a large working platform that allows up to three workers to stand. These telescopic boom lifts can lift loads of 230kg to working heights of up to 28.5m. The expanded outreach and 360-degree turntable rotation give considerable flexibility for challenging jobsite applications. Due to its adjustable modes of travel speed, the self-propelled telescopic boom lift is able to handle a variety of lifting duties in restricted places and rough terrains.
Standard Features
- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- 360° Turntable rotation
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
- Engine restart protection
- Automatic engine failure shutdown
- Spin out engine tray
Optional
- Platform swing gate
- Platform alternate leverage
- Welder connecting packages
- Welder wire connecting to the platform
- Airline to platform
- Hydraulic oil cooler
- Hydraulic oil for extremely cold areas
- Pipeline for extremely cold area
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
- Front driving light
- Traction packages
- AC power source
- Preheater
- Cold start components
- AC generator set
- Diesel exhaust gas purification muffler
- Diesel fireproof star silencer
- Air pre filter
Specifications
| Models | HT270 | HT285J |
| Max. working height m | 27m | 28.5m |
| Max. platform height m | 25m | 26.5m |
| Max. outreach m | 20.2m | 21.6m |
| Max. lift capacity kg | 230kg | 230kg |
| Platform size B*C*A | 1.8*0.76*1.1m | 1.8*0.76*1.1m |
| Height-stowed D | 2.8m | 2.8m |
| Length-stowed E | 11.168m | 12.05m |
| Width F | 2.3/2.5m | 2.3/2.5m |
| Wheelbase G | 3.0m | 3.0m |
| Ground clearance H | 0.4m | 0.4m |
| Turntable rotation | 360° | 360° |
| Turntable tailswing | 1.5m | 1.5m |
| Platform rotation | 180° | 180° |
| Jib Swing | / | 130°( 75°/-55°） |
| Drive speed, stowed | 5.1km/h | 5.1km/h |
| Drive speed, raised | 1.1km/h | 1.1km/h |
| Gradeability (4WD) | 45% | 45% |
| Min. turning radius-(inside) | 3.6m | 3.6m |
| Min. turning radius-(outside) | 6.88m | 6.88m |
| Drive wheels number | 4 | 4 |
| Steering wheels number | 2 | 2 |
| Controls | Electro Hydraulic proportional control | Electro hydraulic proportional control |
| System voltage | DC 12V | DC 12V |
| Hydraulic tank capacity L | 180L | 180L |
| Fuel tank capacity L | 130L | 130L |
| Tire size | 36/14-20; Rubber solid tires | 36/14-20; Rubber solid tires |
| Power | Cummins engine QSF2.8T 54kw | Cummins engine QSF2.8T 54kw |
| Total weight(with oscillating axle) kg | 16100 | 16600 |
| Total weight(without oscillating axle) kg | 15400 | 15500 |

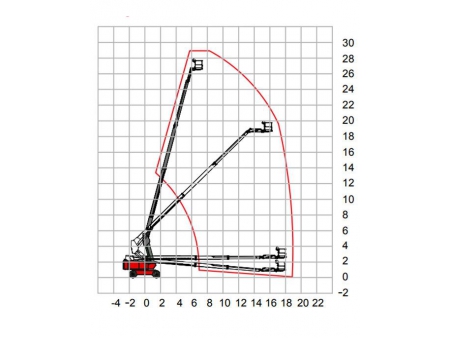

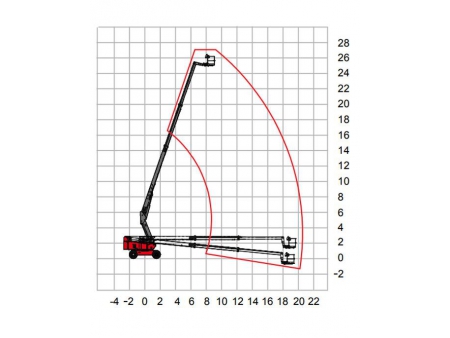

Working Heights
- HT270
- HT285J
Stowed Dimensions
HT270 HT285JRelated products
