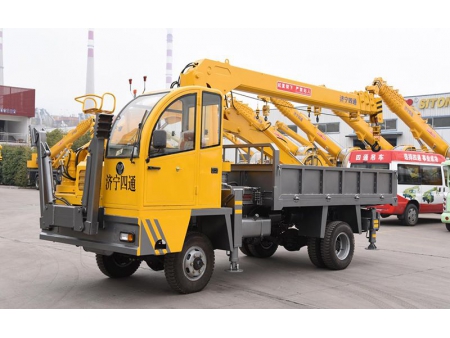

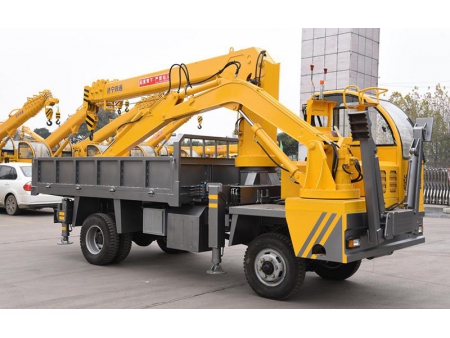

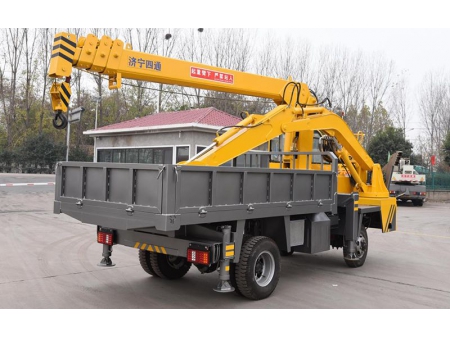

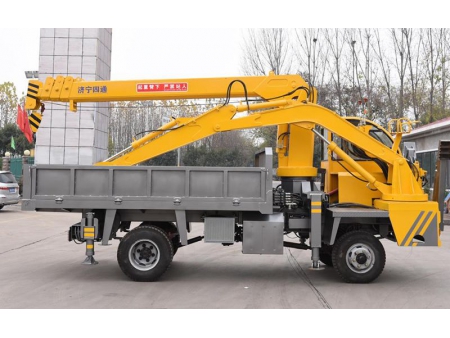

10T Multifunction Dumper, STSC-10
STSC-10 multifunction dumper is a multi-purpose vehicle designed for working in tight spaces. It features our independently developed chassis having compact structure and small turning radius. This dumper truck is equipped with a telescopic boom that can be extended to the maximum length of 14m, and the configuration of horizontal supporting cable and 360-degree rotating platform makes the daily work and maintenance easier. The excavator bucket has a capacity of 0.2m³ and a digging depth of 3.5m. This multifunction dumper is widely applicable to industrial sand plants, construction sites, and more.
Feature- Adopting Weifang Boling 4105 engine, providing large torque at low speed, stable performance and improved climbing ability;
- Wider steering range implies a smaller turning cycle, making the multifunction dumper ideal for limited spaces, small slopes and narrow access points;
- Self loading and unloading of materials;
- High digging efficiency and powerful lifting performance;
Specification
- Max. loading capacity
- 10t
- Bucket capacity
- 0.2m³
- Truck bed size
- 3.8m*2.2m*0.5m
- Max. lifting height
- 14m
- Max. digging depth
- 3.5m
- Drive
- 4*4 drive
- Engine model
- Weifang Boling 4105 engine
- Tyres
- 825R16
