Hydraulic Dual Scissor Lift Table Cart Manufacturer

Hydraulic Dual Scissor Lift Table Cart

: http://industry-forklift.com/6-3-dual-scissor-lift-table-cart.html

The SPS series dual-scissor table lift cart not only lifts materials, but also moves them from place to place within the factory.

Basic parameters

Load capacity: 150kg-800kg
Lifting height: 1100mm-1500mm

Features

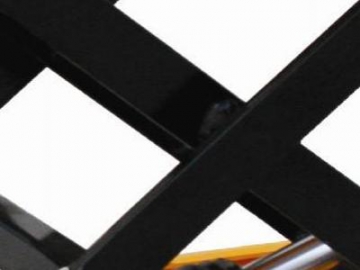

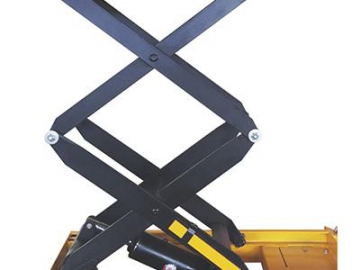

The dual scissor fork arm design meets different lifting height requirements.
The reliable hydraulic system guarantees the long service life.
Electric controls control ascent and descent, guaranteeing a highly efficient, easy operation.
The distance between every movable part is in full accordance with CE standards, ensuring user safety.

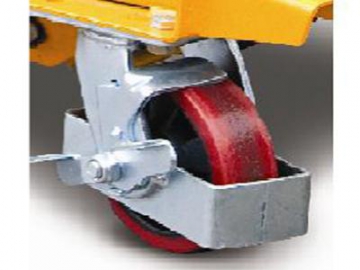

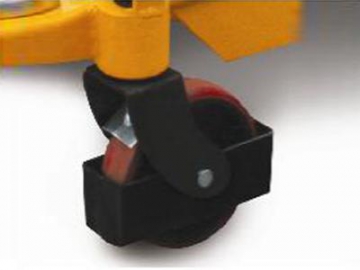

The rear wheel is equipped with a protective wheel brace that will stop immediately in the event of an emergency.
Overload protection.
The stable ascent and descent is guaranteed regardless of the load weight and size, with no impact and a guaranteed safe operation.
The lifting is carried out either by hand or via foot pedal.
The hand control valve guarantees the accurate operation.

Technical parameters

Model (double scissors)		SPS150	SPS350	SPS500	SPS800
Load capacity/rated load	kg	150	350	500	800
Max. lift height	h12 (mm)	1100	1300	1550	1500
Min. height of table	h13 (mm)	302	350	410	475
Lifting height	h3 (mm)	798	950	1025	1025
Table size	lxb5xs(mm)	70045035	91050052	101052060	122061060
Foot pedal cycles to max height		≤30	≤60	≤70	≤70
Service weight	kg	64	105	172	172
Carton size	mm	860485300	985510350	1370645470	1370645470

Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
