GUIBAO 1077 Elastomeric Coatings
GUIBAO 1077 Elastomeric Coating is an elastomer anti-corrosion material specially formulated for the inner linings of coal-fired chimneys, sewage tanks, chemical treatment tanks, etc. The coating is acid/alkali and high temperature resistant, serving as a protective film of the inner lining of these components.
- Two-component, room temperature curing.
- Good flexibility, adapts to the stress caused by the expansion and contraction of different substrates. No cracking, no shedding.
- Strong corrosion-resistance to withstand the corrosion damage of high concentration acid and alkali materials at high temperatures.
- Excellent anti-permeability and abrasion resistance. Excellent resistance to abrasion and erosion caused by flue gas dust and the gas flow with high velocity.
- Outstanding resistance to temperature extremes. Can be used for a long time under 100℃ and can withstand short exposures to temperatures of 120℃-150 after curing.
- Great adhesion ability. Powerful adhesion to a wide range of substrates such as the concrete, steel substrate, FRP, etc.
- No harmful volatile gases, non-harmful to humans, non-polluting.
- Anti-corrosion of the inner lining of the power plant chimneys, flue, cooling tower, etc.
- Anti-corrosion of the inner lining of the concrete sewage tanks, steel tanks of the sewage disposal systems in sewage disposal plants, chemical plants, power plants, etc.

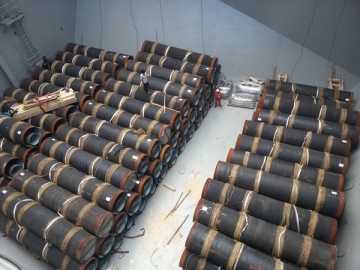

- External anti-corrosion of the pipes, metal structural component, etc.
Specifications
Q/71304249-7.012-2014
Color
Part A of 1077 is in black, part B is in yellow, black paste after mixing.
Packing
Part A of 1077 is 20kg/plastic pail, Part B is in2.5L/metal pail (net 1.4kg);
Suggested mixing ratio (be weight) for part A&B is 14~16:1.
| Serial number | Performance | Technical Specifications |
| 1 | Solid content | ≥ 65% |
| 2 | Theoretical coverage area and thickness | 4~6m2/kg, dry film 40~50μm |
| 3 | Tack free time, 23℃ | ≤ 6h,140 ℃ ≤ 2h |
| 4 | Curing time, 23℃ | 7d |
| 5 | Temperature resistance | -40℃~200℃ |
| 6 | Adhesive force (completely dry, square drawing method) | Class 1 |
| 7 | Salt spray and acid fog resistance/500h | No bubbles, no shedding |
| 8 | artificial aging resistance /1000h | No powder, no cracking, no shedding |
| 9 | Diluent amount | 5%~15% |
