PET Braided Self Closing Sleeving Manufacturer

PET Braided Self Closing Sleeving

: http://sleeving-product.com/6-3-multifilament-self-closing-braided-sleeving.html

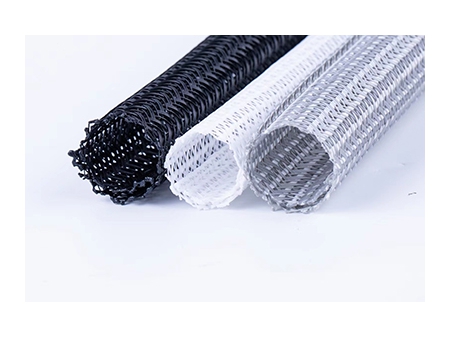

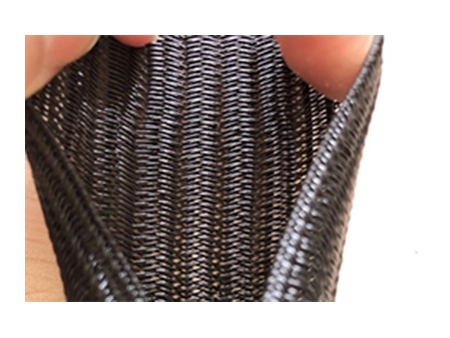

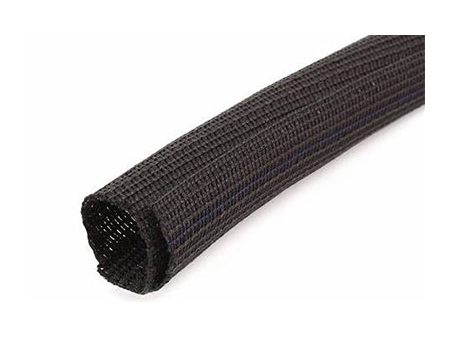

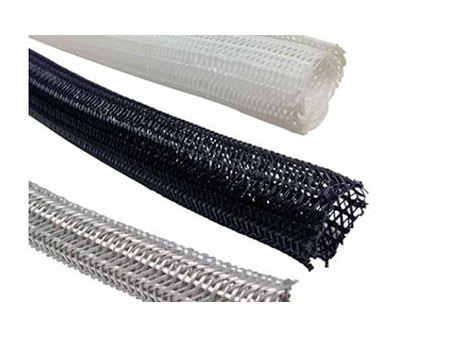

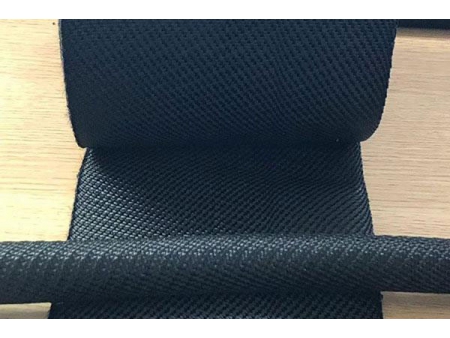

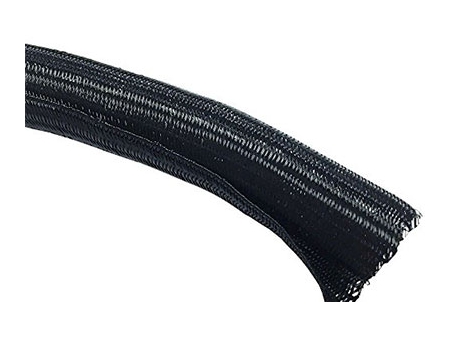

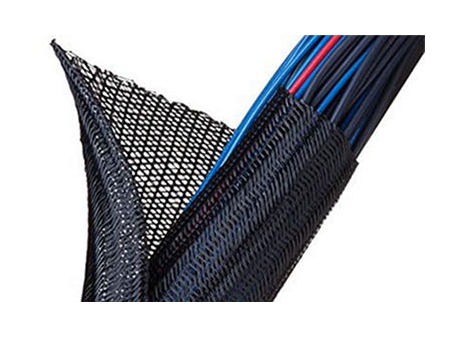

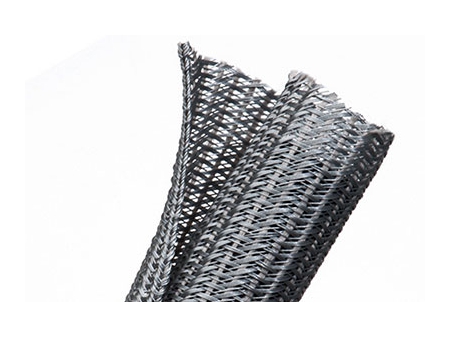

Split self-closing braided sleeving is produced using polyester mono and multifilament. The material offers excellent wear resistance, heat radiating performance, and is easy to install and remove. The sleeving covers and protects electrical wires. Sleeving is applied in electrical cables, electronics cables, railway applications, and telecoms products.

Specifications
Material: polyester mono and multifilament
Working temperature: -40℃- 150℃
Melting temperature: 240℃±10℃
Fire proofing grade: UL94-V1
Edge Overlap：25%

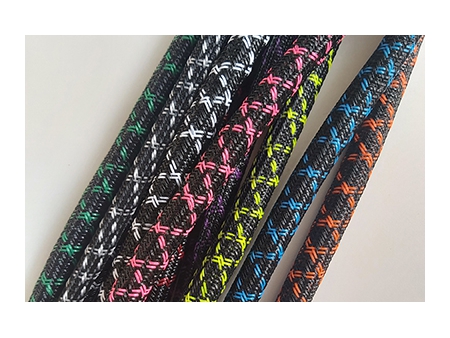

Color: Black, White, Gray...
Cutting Tools：Hot knife/ Scissors
Product certification: ROHS, Halogen Free

Parameters (mm)

Model	Inner Diameter(I)	Maximum Harness Diameter	Overlap	Package	Expanded Width
PCS-003	3	4	25％	100m/ reel	20-22
PCS-005	5	6		100m/ reel	24-26
PCS-008	8	9		100m/ reel	32-36
PCS-010	10	11		100m/ reel	38-42
PCS-013	13	14		50m/ reel	50-55
PCS-016	16	17		50m/ reel	60-70
PCS-019	19	20		25m/ reel	85-95
PCS-025	25	27		25m/ reel	105-115
PCS-030	30	32		25m/ reel	117-132
PCS-038	38	40		25m/ reel	150-168
PCS-050	50	52		25m/ reel	195~220
