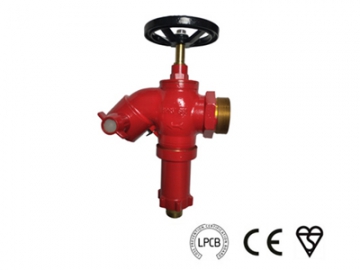

Pressure Regulating Landing Valve
Pressure regulating valve is normally installed in the buildings.
The outlet pressure range is 5 bar-8 bar.
The rated inlet pressure suitable for this valve can reach 20 bar. The working temperature is between 0°C to 38°C.
Specification

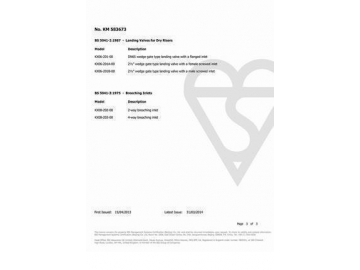

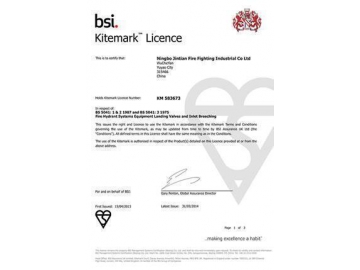

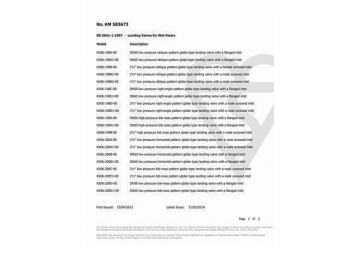

Standard: Certificate to BS 5041-1 Approve by BSI
Body: Copper alloy, Thickness ≥3mm
Hand wheel: Grey cast iron or Aluminum alloy

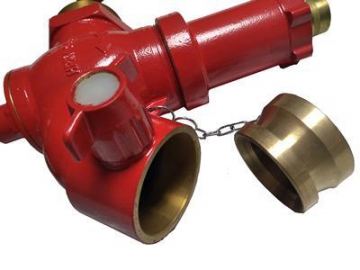

Black cap: Copper alloy or Plastic .

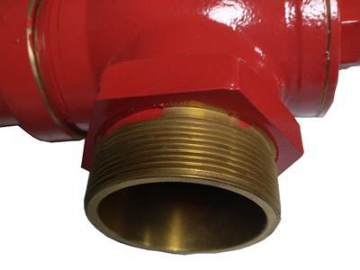

Inlet: Flanged or BSP Screwed

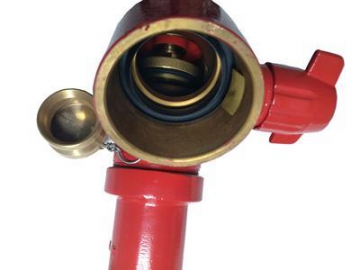

Outlet: Female instantaneous to BS336
Surface: Red or yellow painting
Test pressure: 30 bar
Fully open: 4.5 turn
Inlet pressure 20bar,regulating outlet static pressure 5 – 8 bar
Inlet pressure 20bar,regulating outlet static pressure > 20 bar
| Size | H (mm) | W (mm) | Inlet | Outlet |
| DN50 | 380 | 225 | 165 F | BS336 |
| DN65 | 380 | 225 | 185 F | BS336 |
| DN65 | 380 | 260 | 2.5" BSPT | BS336 |
| DN65 | 380 | 260 | 2.5" BSP | BS336 |
