Tree Planting Machine

: http://farm-harvester.com/6-4-3-tree-planting-machine.html

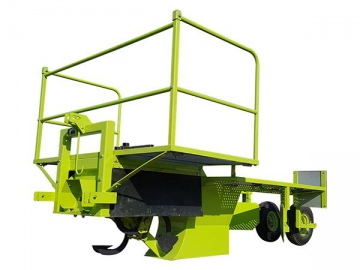

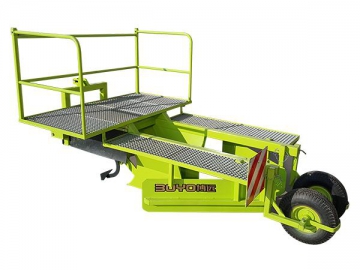

The PL-30 tree planting machine is easily paired with a 65+ horsepower tractor. It is applicable for planting seedlings in both tilled and untilled soil, with an efficiency of 5,000 to 8,000 trees an hour.

This tree planting machine combines ditching, sapling planting, mulching and compacting processes in order to efficiently complete tree planting. Equipped with a ditching gearbox assembly and ditching cutter, this machine has a strong adaptability to soil texture and can plant annual, biennial and triennial trees.

Main technical parameters

Item	Unit	PL-30
Overall size (L×W×H)	mm	3400×2000×1800
Matching power	horsepower	＞65
Ditching width	mm	300
Max. ditching depth	mm	300
Row spacing	mm	500-2000
Working efficiency	Tree /8 hours	5000-8000
Unload weight	kg	670
Walking speed	km/h	1-3

Features of PL-30 tree planting machine

This tree planting machine can quickly carry out tree planting in a single usage, carrying out ditching, sapling planting, earth covering and compacting processes.
This tree planting machine has a compact structure, low power consumption and high working efficiency, thus giving it the capability to plant 5000-8000 trees per hour.
This equipment also features a strong soil adaptability and uniform row spacing.
