Powered Mobile Dual Scissor Lift Table Manufacturer

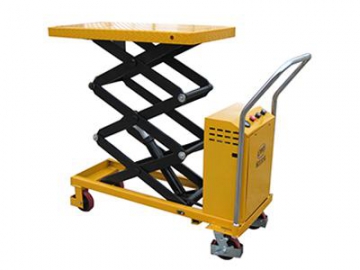

Powered Mobile Dual Scissor Lift Table

: http://industry-forklift.com/6-4-electric-lift-table.html

Basic parameters

Load capacity: 350kg
Lifting height: 1300mm

Features

The dual scissor fork arm design meets different lifting height requirements.
Electric controls control the ascent and descent, ensuring a highly efficient, easy operation.
The distance between every movable part is in full accordance with CE standards, preventing users from accidentally interfering with the parts and ensuring user safety.
The rear wheel is equipped with protective wheel brace that will automatically stop in an emergency.
Overload protection.
The stable ascent and descent is guaranteed regardless of the load size and weight, with no impact and an exceptionally safe operation.

Technical parameters

Model (double scissor)		DPS350
Load capacity/rated load	kg	350
Max. lift height	h12 (mm)	1320
Min. height of table	h13 (mm)	405
Lifting height	h3 (mm)	915
Table size	lxb5xs(mm)	91050056
Motor power	Kw	0.8
Lifting speed	S	≤15
Lowering speed	S	15
Service weight	kg	150
Carton size	mm	1240540450

Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.

Inquiry

Photos Gallery

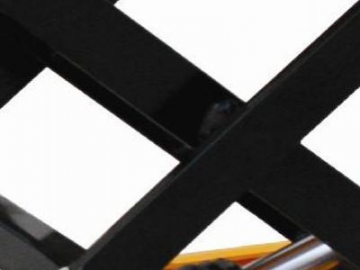

Safety distance

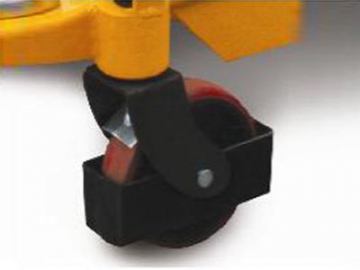

Wheel protection

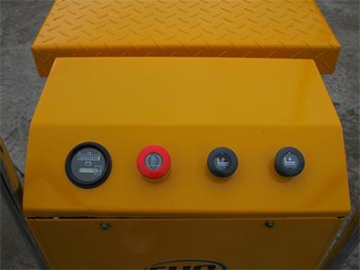

Operation panel

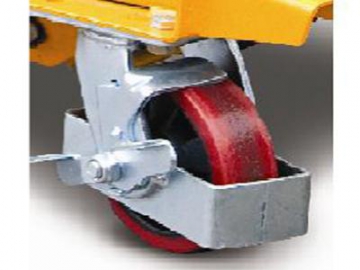

Wheel protection
