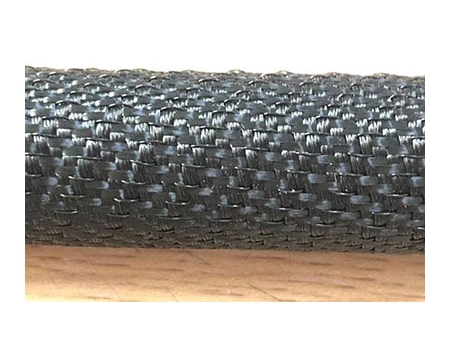

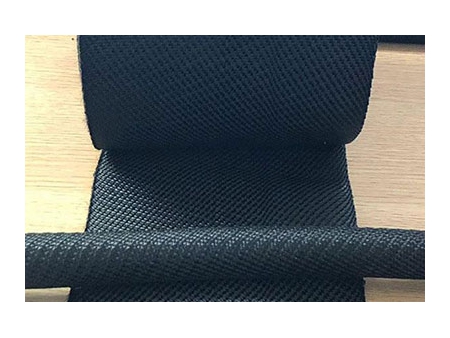

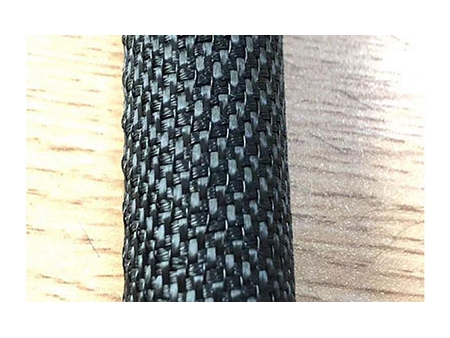

PET/PP Self Wrap Braided Sleeving
PET/PP self wrap braided sleeving is made of PET/PP monofilament and polyester/nylon filament. The sleeving features a special self wrapping technology that offers a 25% coverage rate. The sleeving is convenient for installation, removal, and wire management. It presents an elegant appearance with great fireproof performance and wear resistance for wires and cables in automobiles, telecoms equipment, and more.
Specifications
Material: environment-friendly and nontoxic polyester filament or PP filament
Working temperature: -40℃-150℃
Melting temperature: 250℃
Coverage rate: ≥25%
| Model | Inner diameter(d) | Coincidence rate (%) | Coverage diameter(mm) | Package(L) | INQUIRY |
| MX-PCN006 | 6 | 25% | 6 | 25 m/reel | |
| MX-PCN008 | 8 | 8 | 25 m/reel | ||
| MX-PCN010 | 10 | 10 | 25 m/reel | ||
| MX-PCN013 | 13 | 13 | 25 m/reel | ||
| MX-PCN016 | 16 | 16 | 25 m/reel | ||
| MX-PCN019 | 19 | 19 | 25 m/reel | ||
| MX-PCN025 | 25 | 25 | 25 m/reel | ||
| MX-PCN032 | 32 | 32 | 25 m/reel | ||
| MX-PCN038 | 38 | 38 | 25 m/reel | ||
| MX-PCN045 | 45 | 45 | 25 m/reel | ||
| MX-PCN050 | 50 | 50 | 25 m/reel |
Note: Please call or email us for other specifications.
