Pro Microphone Mixer
Request a Quote
- HT-1010

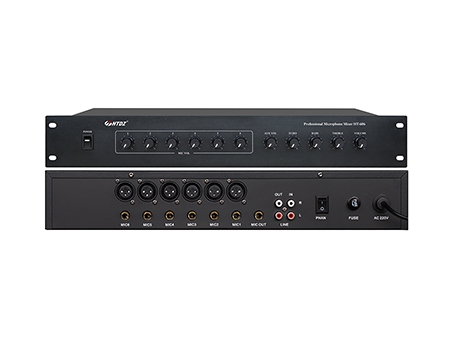

- HT-606

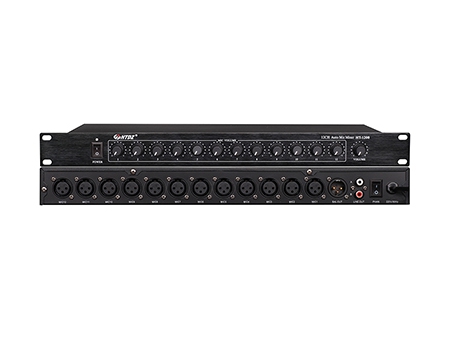

- HT-1200
| Model No. | HT-1010 | HT-606 | HT-1200 |
| Input Power | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz |
| Output Power | Phantom power 48V | Phantom power 48V | Phantom power 48V |
| Output Current | 6.5 mA | 6.5 mA | 6.5 mA |
| Connection Type | 06.35x10, XLRx10 | 06.35x6, XLRx6 | XLRx12 |
| N.W. | 3.03 kg | 2.94 kg | 2.10 kg |
| Dimension (mm) | 480x178x71 | 480x178x71 | 480x205x44 |
| Input Type | 06.35/XLR/RCA | 06.35/XLR/RCA | XLR |
| Consumption | 12W | 12W | 10W |

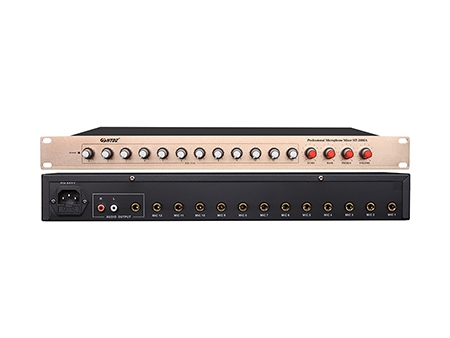

- HT-2000A

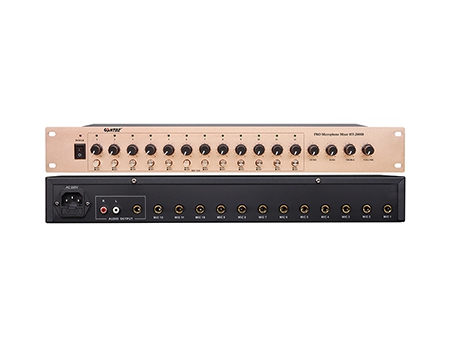

- HT-2000B
| Model No. | HT-2000A | HT-2000B |
| Input Power | AC 220V 50Hz | AC 220V 50Hz |
| Connection Type | 06.35x12 | 06.35x12 |
| N.W. | 1.84 kg | 2.5 kg |
| Dimension (mm) | 480x175x44 | 480x175x62 |
| Input Type | Microphone 06.35 | Microphone 06.35 |
| Output Type | RCA, 06.35 | RCA, 06.35 |
| Consumption | 5W | 5W |
| Input impedance (Ohm) | 2K | 2K |
| Frequency Response | 10 Hz - 20 kHz | 10 Hz - 20 kHz |
| Audio Output Level | >25 mV | >25 mV |
| S/N | >78 dB | >78 dB |
| Impedance | 2 kΩ | 2 kΩ |
