Self-Propelled Telescopic Boom Lift, HT390/HT410J
Self-Propelled Telescopic Boom Lift HT390/HT410J
Video
Mantall HT390/HT410J self-propelled telescopic boom lifts are designed with a large working platform that can accommodate up to three workers standing. These telescopic boom lifts have the ability to carry heavey loads of 340kg to working heights of up to 41 meters. In order to adapt to challenging jobsite applications, the extended outreach and 360-degree turntable rotation give a great deal of versatility. Due to its optional modes of travel speed, the self-propelled telescopic boom lift can carry out a variety of lifting jobs in restricted areas and move over various rough terrains.
Standard Features

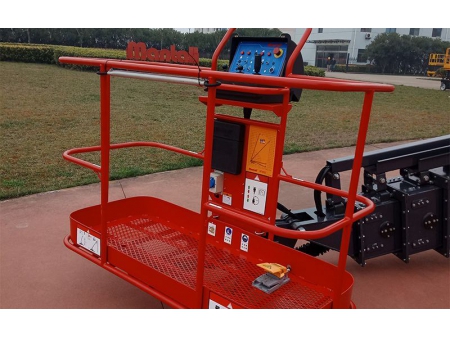

- Self-leveling platform
- Hydraulic rotation platform

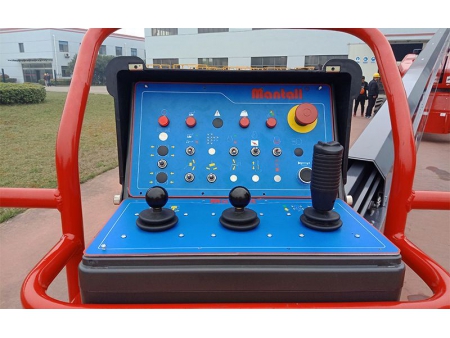

- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- 360° Turntable rotation
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
Optional
- Platform swing gate
- Platform alternate leverage
- Welder connecting packages
- Welder wire connecting to the platform
- Airline to platform
- Hydraulic oil cooler
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
- Traction packages
- AC power source
- Oscillating axle
Specifications
| Models | HT390 | HT410J |
| Max. working height m | 38.5m | 41m |
| Max. platform height m | 36.5m | 39m |
| Max. lift capacity kg | 340kg | 340kg |
| Platform size B*C*A | 1.8*0.76*1.1m | 1.8*0.76*1.1m |
| Height-stowed D | 3.55m | 3.55m |
| Length-stowed E | 16.2m | 16.6m |
| Width F | 2.5m（3.8m） | 2.5m（3.8m） |
| Wheelbase G | 3.8m | 3.8m |
| Ground clearance H | 0.52m | 0.52m |
| Turntable rotation | 360° | 360° |
| Platform rotation | 180° | 180° |
| Jib swing | / | 130°（ 75°/55°） |
| Drive speed, stowed | 4.24km/h | 4.24km/h |
| Drive speed, raised | 0.55km/h | 0.55km/h |
| Gradeability (2WD) | 25% | 25% |
| Gradeability (4WD) | 40% | 40% |
| Drive wheels number | 2 | 4 |
| Steering wheels number | 2 | 4 |

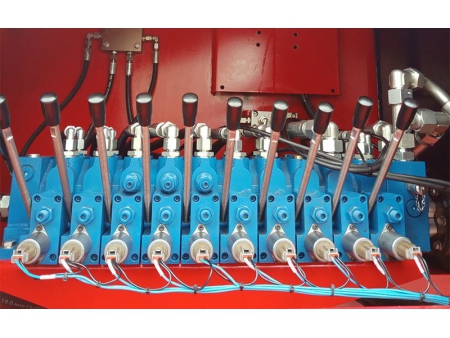

| Controls | Electro hydraulic proportional control | Electro hydraulic proportional control |
| System voltage | DC 12V | DC 12V |
| Tire size | 445/65-24; Rubber Solid Tire | 445/65-24; Rubber Solid Tire |
| Power | Cummins engine QSF2.8T 54kw | Cummins engine QSF2.8T 54kw |
| Total weight(4WD) kg | 24000 | 26500 |

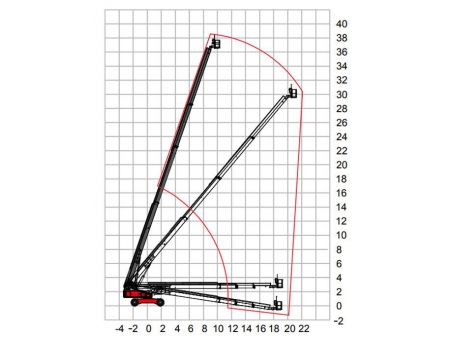

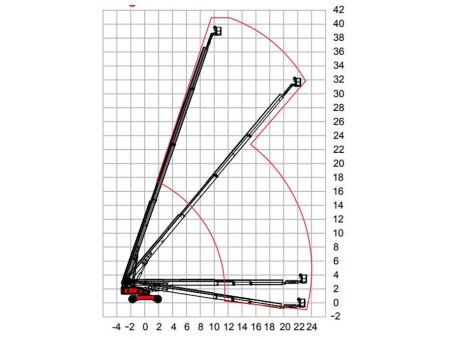

Working Heights
- HT330
- HT350J
Stowed Dimensions
HT390 HT410JDetails
