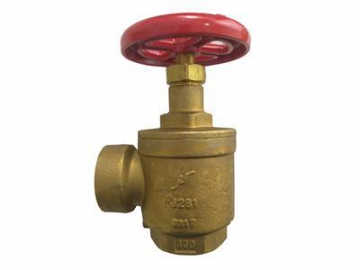

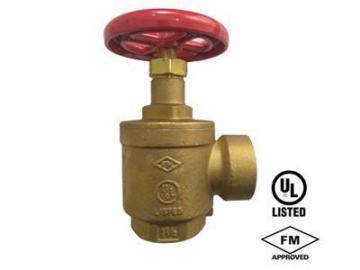

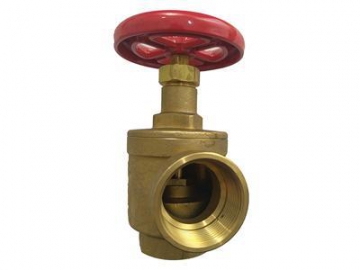

Angle Hose Valve
The UL FM Angle Hose Valve is manufactured according to NFPA 13 standards and they are suitable for fire protection service outlets or with a hose rack assembly.
Specification:
Standard: As per NFPA 13, UL668
Body: Cast brass

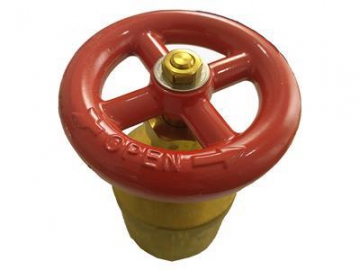

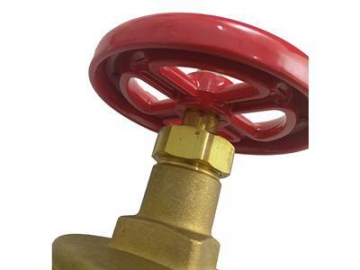

Hand wheel: Forging Brass
Pressure rating: 300 PSI
Angle Type: Female X Male / Double Female

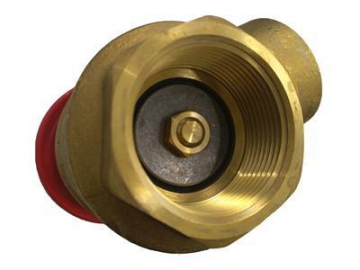

Inlet: Female NPT Inlet
Outlet: Male hose thread / Female NPT outlet
Optional Plated: Polished brass / Rough chrome plated / Polished chrome plated
Size:1 1/2" and 2 1/2"
| Size | V | B mm | Closed C mm | Open C mm | D mm |
| 1-1/2" | 630 | 100 | 169 | 195 | 50 |
| 2-1/2" | 790 | 125 | 225 | 268 | 68 |
