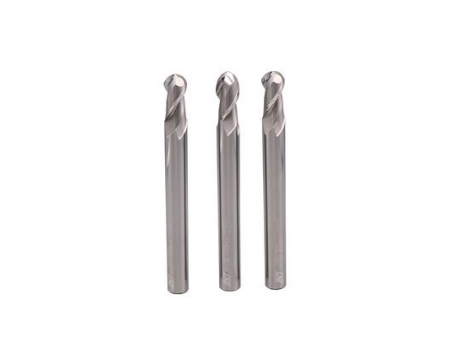

EME05 Carbide, 2 Flute Ball End Mills

EME05 Carbide, 2 Flute Ball End Mills
EME05 Carbide, 2 Flute Ball End Mills
EME05 Carbide, 2 Flute Ball End Mills
: http://metalworking-tool.com/6-5-eme05-2-flute-carbide-end-mills.html
  • High performance in machining aluminum alloy, copper alloy, graphite, resin and non-ferrous material
  • Features excellent surface finishes and superior chips ejection
  • Suitable for profile milling, slotting, and chamfer cutting

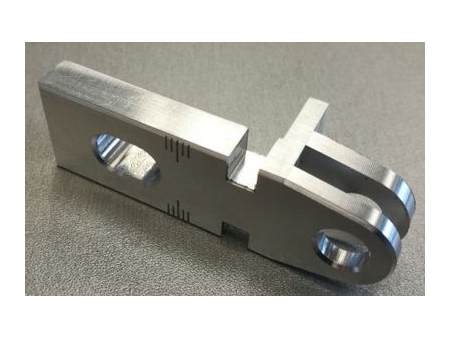

Application
Product Specifications
Coating Non-Coated or TiN, TiCN & TiAIN HRC Aluminum Alloy / Copper Alloy / Graphite / Resin
Helix Angle 45° Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide 2 Flute Ball Nose Cutter- Regular Length, for Copy Milling (UNT-EME05)
Unit: mm
UNT EDP # Click to Order Radius
R 		Mill Dia.
D1 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EME05010 R0.5 1 4 2 50 2
EME05015 R0.75 1.5 4 3 50 2
EME05020 R1.0 2 4 4 50 2
EME05025 R1.25 2.5 4 5 50 2
EME05030 R1.5 3 4 6 50 2
EME05030 R1.5 3 3 6 50 2
EME05040 R2.0 4 4 8 50 2
EME05050 R2.5 5 6 10 50 2
EME05060 R3.0 6 6 12 50 2
EME05080 R4.0 8 8 16 60 2
EME05100 R5.0 10 10 20 75 2
EME05120 R6.0 12 12 24 75 2
EME05160 R8.0 16 16 32 100 2

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
