EME06 Carbide, 2 Flute Ball End Mills with Long Neck

EME06 Carbide, 2 Flute Ball End Mills with Long Neck
EME06 Carbide, 2 Flute Ball End Mills with Long Neck
EME06 Carbide, 2 Flute Ball End Mills with Long Neck
: http://metalworking-tool.com/6-6-eme06-2-flute-carbide-end-mills.html
  • High performance in machining aluminum alloy, copper alloy, graphite, resin and non-ferrous material
  • Features excellent surface finishes and superior chips ejection
  • Suitable for profile milling, slotting, and chamfer cutting
Application
Product Specifications
Coating Non-Coated or TiN, TiCN & TiAIN HRC Aluminum Alloy / Copper Alloy / Graphite / Resin
Helix Angle 45° Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide Ball End Mill for Aluminum, 2 Flute, Long Length (EME06)
Unit: mm
UNT EDP # Click to Order Radius
R 		Mill Dia.
D1 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EME06010075 R0.5 1 4 2 75 2
EME06015075 R0.75 1.5 4 3 75 2
EME06020075 R1.0 2 4 4 75 2
EME06025075 R1.25 2.5 4 5 75 2
EME06030075 R1.5 3 4 6 75 2
EME06040075 R2.0 4 4 8 75 2
EME06040100 R2.0 4 4 8 100 2
EME06050100 R2.5 5 6 10 100 2
EME06060100 R3.0 6 6 12 100 2
EME0606075 R3.0 6 6 12 75 2
EME06080100 R4.0 8 8 16 100 2
EME0608075 R4.0 8 8 16 75 2
EME06100100 R5.0 10 10 20 100 2
EME06120100 R6.0 12 12 24 100 2
EME06160150 R8.0 16 16 32 150 2

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.

Related products
EME02 Carbide, 2 Flute Square End Mills with Long Neck
EME02 Carbide, 2 Flute Square End Mills with Long Neck
EME05 Carbide, 2 Flute Ball End Mills
EME05 Carbide, 2 Flute Ball End Mills
EMA14 2 Flute Micro Ball End Mill, Long Neck End Mill
EMA14 2 Flute Micro Ball End Mill, Long Neck End Mill

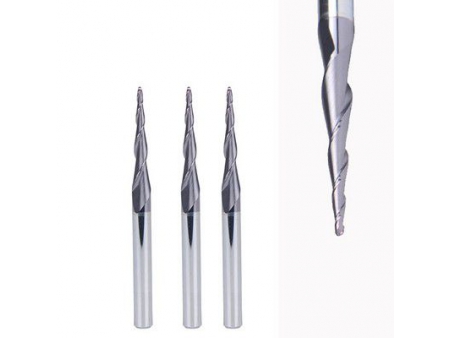

EMA16 2 Flute Ball End Mill with Taper Neck
