Mobile Hydraulic Lift Table Manufacturer

Mobile Hydraulic Lift Table

: http://industry-forklift.com/6-6-hydraulic-lift-table-cart.html

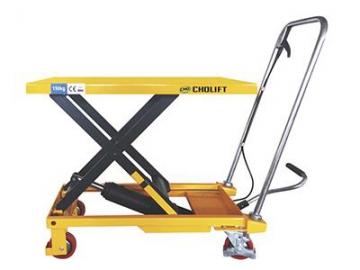

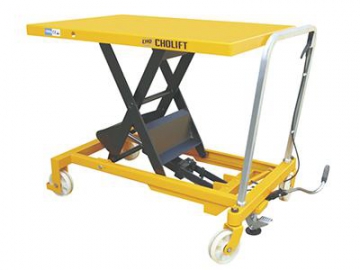

The SPA series hydraulic lift table cart not only lifts materials, but also transports goods throughout a factory. Multiple platform sizes are available within this series, and customers can choose between a single scissor or dual scissor type.

Basic parameters

Load capacity: 150kg-1000kg
Lifting height: 740mm---1000mm

Features

The reliable hydraulic system guarantees the long service life.
Electric control of the ascent and descent ensures an easy operation without rotating the fixed handle.
The distance between every movable part is in full accordance with CE standards, ensuring user safety.
Overload protection.
The stable ascent and descent is guaranteed regardless of the load weight and size, with no impact and a safe operation.

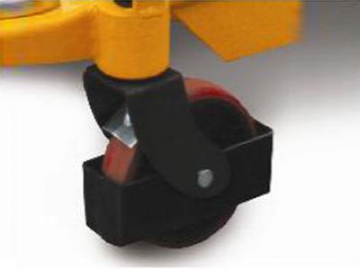

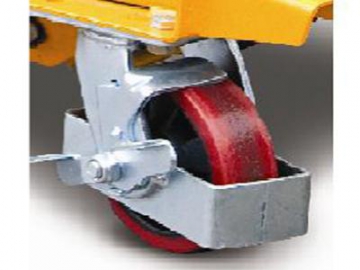

The rear wheel is equipped with a protective wheel brace that will automatically stop in an emergency.
The lifting can be completed by hand or pedal.
The hand control valve guarantees the accurate operation.

Technical parameters

Model		SPA150	SPA300	SPA500	SPA1000	SPA1500	SPK1000
Load capacity/rated load	kg	150	300	500	1000	1500	1000
Max. lift height	h12 (mm)	740	900	900	1000	1000	1000
Min. height of table	h13 (mm)	225	340	340	420	420	425
Lifting height	h3 (mm)	515	560	560	580	580	575
Table size	lxb5xs(mm)	70045035	85550050	85550050	100051055	122061060	120080055
Foot pedal cycles to max height		≤25	≤32	≤45	≤55	≤70	≤55
Service weight	kg	44	82	87	115	135	135
Carton size	mm	860485300	985510350	985510350	1170520420	1420625420	1400810430

Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
