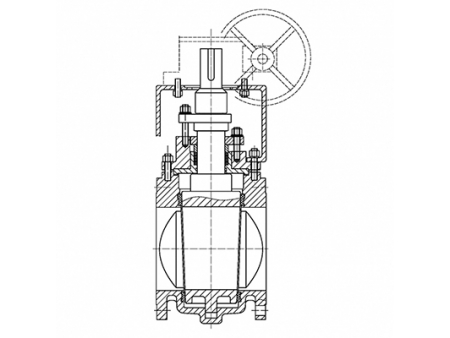

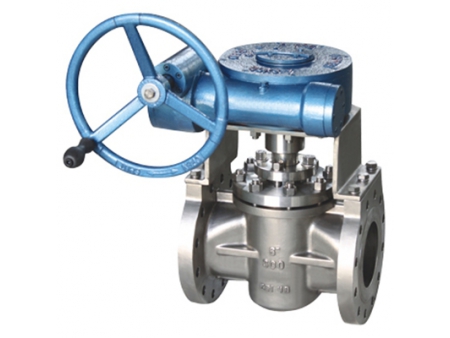

Double gland structure plug valve

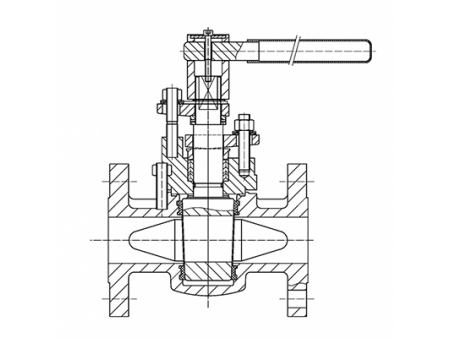

Fixed double gland structure plug valve

The plug valve employs the plug with through hole as the opening and closing part, realizing opening and closing by the rotation between the plug and the valve.

Our company has developed a new type of plug valve for severe corrosion, high temperature, high pressure and other harsh conditions. The new plug valve employs trunnion double gland structure, being able to fit the harsh working conditions in petroleum, chemical and smelting industries, ensure long-term safe and stable operation of process pipeline equipment, and avoid the internal and external leakage of traditional plug valves in pipelines.

Features
- Full bore or reduced bore
- Trunnion structure
- Double gland structure
- Fire-safe and anti-static device
- Packing box structure
- Self-adjusting corrosion and erosion resistance structure
Specification
Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K
Size range: NPS1/2” ~24”, DN15~DN600
Standard connections: flange, threaded, butt weld, socket weld
Operation: handle, gear, pneumatic actuator, electric actuator

Samples

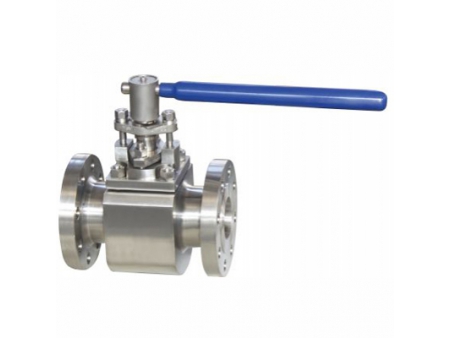

2. Pressure: 600LB
  Size: 2”
  Material: CW6M
  Standard connection: Flange RF
  Applications: acetic acid

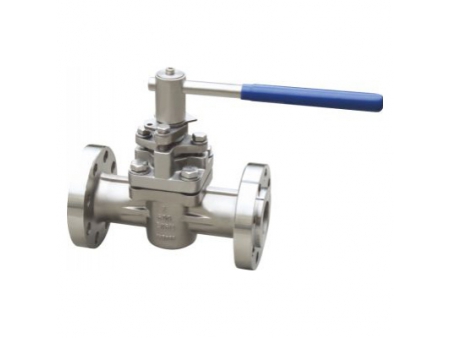

2. Pressure: 150LB
  Size: 3”
  Material: zirconium 702
  Standard connection: Flange RF
  Applications: acetic acid

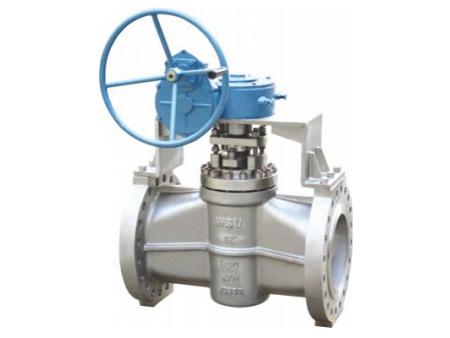

2. Pressure: 300LB
  Size: 6”
  Material: 904L
  Standard connection: Flange RF
  Applications: phosphoric acid and sulfuric acid transportation

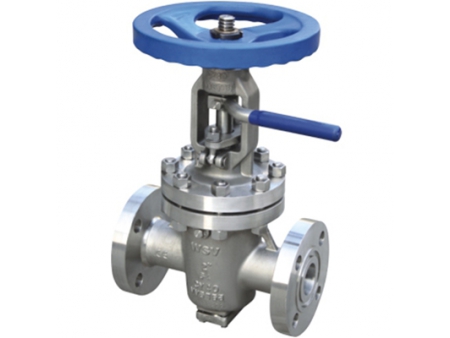

2. Pressure: PN64
  Size: DN50
  Material: CY40
  Standard connection: Flange RF
  Applications: caustic soda transportation

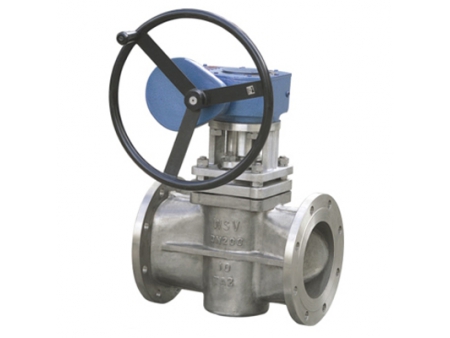

2. Pressure: PN10
  Size: DN200
  Material: Titanium Gr.2
  Standard connection: Flange RF
  Applications: soda ash, metallurgy

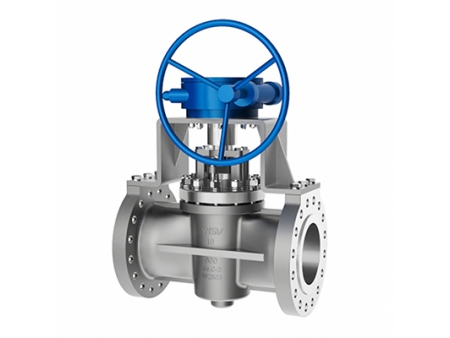

2. Pressure: 600LB
  Size: 12”
  Material: N7M
  Standard connection: Flange RF
  Applications: acetic acid transportation
