Our soldering fittings are most often made of CW617N brass and CU57-3 brass. Upon request for special needs, other materials such as DZR can be used.

Soldering fittings must precisely connect to copper pipes. Oversized joints cannot be inserted into pipes while an undersized joint is not strong enough and will eventually lead to leakage. Due to this, our soldering fittings feature fully welded parts processed using CNC machine tools, then tested with special tools to ensure the dimensional accuracy.

We can offer soldering fittings with the sizes ranging from 15mm x 1/2’’ to 54mm x 2’’, and different structures such as female straight, male straight, female elbow, male elbow, female tee, male tee, wall-plated, etc.

Shown here are products we can provide, and we offer customization services in terms of shape, material, weight, and size.

  • Male Straight Coupling Fittings
      Model:
      VF-0300
      Specification:
      15 × 1/2"
      15 × 3/4"
      16 × 1/2"
      18 × 1/2"
      18 × 3/4"
      22 × 3/4"
      22 × 1/2"
      22 × 1"
      28 × 1"
      28 × 1 1/4"
      35 × 1"
      35 × 1-1/4"
      54 × 2"

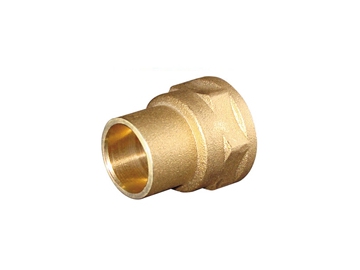

    1. Female Straight Coupling Fittings
        Model:
        VF-0301
        Specification:
        15 × 1/2"
        15 × 3/4"
        18 × 1/2"
        18 × 3/4"
        22 × 3/4"
        28 × 1"
        28 × 1 1/4"
        35 × 1 1/4"
        54 × 2"

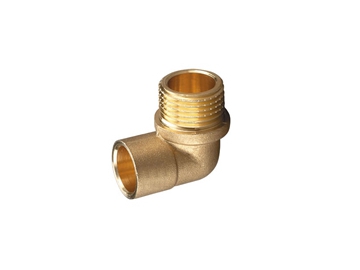

    1. Male Elbow Coupling Fittings
        Model:
        VF-0302
        Specification:
        15 × 1/2"
        16 × 1/2"
        15 × 3/4"
        18 × 1/2"

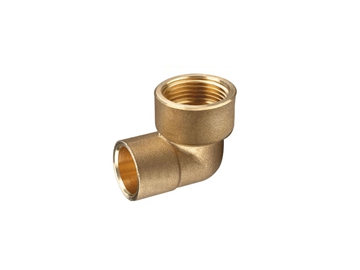

    1. Female Elbow Coupling Fittings
        Model:
        VF-0303
        Specification:
        15 × 1/2"
        18 × 1/2"
        22 × 3/4"

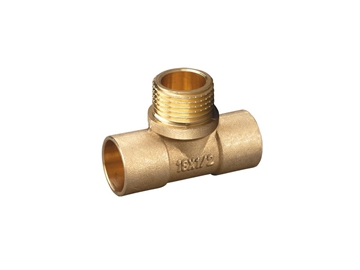

    1. Male Tee Coupling Fittings
        Model:
        VF-0306
        Specification:
        15 × 1/2"
        18 × 1/2"
        22 × 3/4"

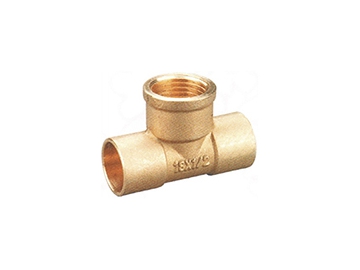

    1. Female Tee Coupling Fittings
        Model:
        VF-0307
        Specification:
        15 × 1/2"
        18 × 1/2"
        22 × 3/4"

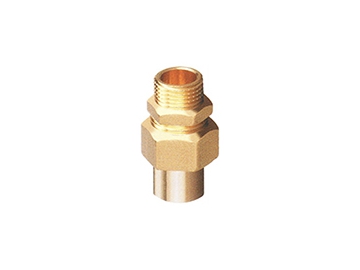

    1. Male Connector Coupling Fittings
        Model:
        VF-0308
        Specification:
        15 × 1/2"
        18 × 1/2"
        22 × 3/4"

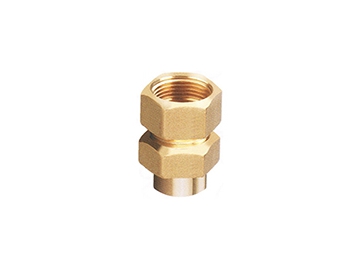

    1. Female Connector Coupling Fittings
        Model:
        VF-0309
        Specification:
        15 × 1/2"
        18 × 1/2"
        18 × 3/4"
        22 × 3/4"
