White Rice Separator, MMJX4 4-Layer Sieve Manufacturer

White Rice Separator, MMJX4 4-Layer Sieve

: http://grainprocessline.com/7-1-2-white-rice-separator.html

Introduction

After milling, impurities in rice are mostly removed, including broken rice, bran balls and rice bran. The white rice graded sifter is then used to screen out qualified rice grains through a continuous screening through four circular sieves with different diameters. The MJX4 4-layer sieve white rice separator has a 4-layer sieve, with an adjustable rotation speed and amplitude, making operation easy.

Parameter

Model	Throughput	Power	Dimension (LWH)	Weight	Air volume
MMJX125*4	3.5-4.5T/H	1.5Kw	214018541850mm	1350Kg	650M³/H
MMJX160*4	5-6.5T/H	1.5Kw	214022401850mm	1500Kg	800M³/H

Features

MJX4 4-layer sieve white rice separator's movement is a rotation around the center of the sieve frame. Both the revolving speed and amplitude can be adjusted.
After being screened by the first sieve, and because the 2nd and 3rd sieves feature a series structure, head rice can be chosen from white rice, making this equipment piece applicable to the performance of two sieving head rice processers, with a low broken rice rate.
The enclosed sifter is equipped with a dust collecting device, which assists in keeping the working environment clean.
The steel slings are used to hang the sieve in the four corners of the sieve box, therefore making operation smooth and stable.

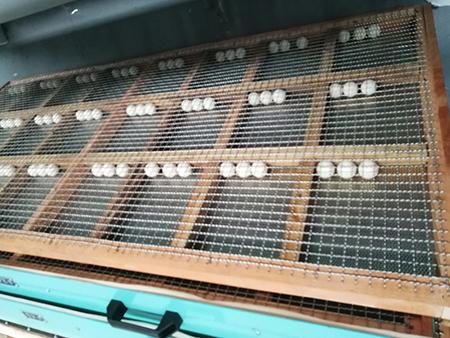

Jump Ball

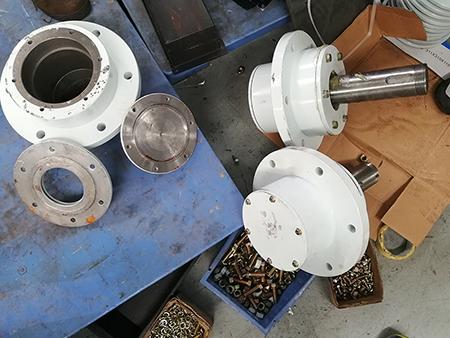

Bearing

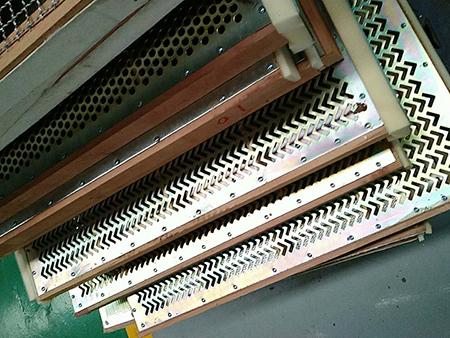

Screen Surface

Effect comparison after multiple screening
