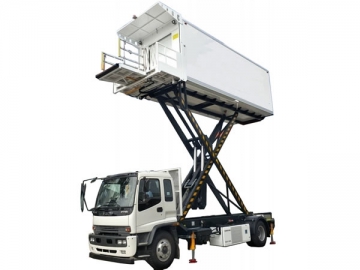

The HD-CT60 aircraft catering truck is used to transport food to the aircraft, and is suitable for use on Boeing B727, B737, B747, B757, L-1011 TriStar, McDonnell MD90, MD-11, DC10, Airbus A300, A340, A380 (one door), CONCORDE, TU-154M, TL-96-300 and other aircraft models.

The truck is mainly composed of a chassis, lifter, thermal door, carriage, supporting feet, workbench, hydraulic system, electrical system, and refrigeration unit.

Feature of Catering Truck

The chassis adopts Euro V emission standard.
The fork rack uses a special manganese steel material with a high hardness and strong compressive resistance.

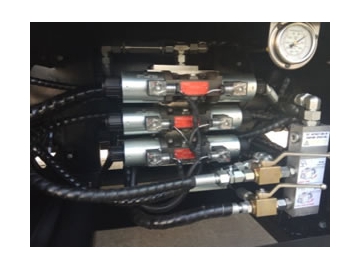

The hydraulic and electrical parts of the truck are all from Western brands, ensuring the stable performance and long service life.
The emergency electric pump can independently lift and load the box for 30 minutes. The box itself is 4 tons.

Automation of Catering Truck

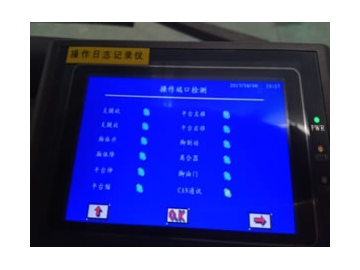

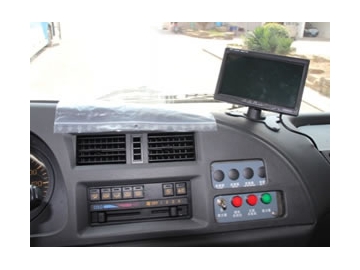

The food truck’s entire operation, including the truck, box and cab, are controlled through the control interface.
The food truck also carries out data collection and transmission.

High Security of Catering Truck

The aircraft catering truck is easy and safe to operate thanks to the manual emergency system.
The protection and warning system are both complete, thus ensuring operator safety.
The truck is equipped with a safety interlock and emergency unlocking system with a high degree of safety
The catering tuck features an intelligent, highly secure monitoring system.

Technical Specifications of Catering Truck

Project	CT60A Configuration 1 (FTR MT/EURO 4)	CT60B Configuration 2 (FVR MT/EURO 4)	CT60C Configuration 3 (FVR MT/EURO 5)	CT60D Configuration 4 (FVR AT/EURO 5)
Platform Working Height	2720～6050mm	2720～6050mm	2720～6050mm	2720～6050mm
Carriage Rated Load	4000kg	4500kg	4500kg	4500kg
Fixed Platform Rated Load	1100kg	1100kg	1100kg	1100kg
Mobile Platform Rated Load	450kg	450kg	450kg	450kg
Platform Left-to-Right Adjustment Range	0～800mm	0～800mm	0～800mm	0～800mm
Platform Scale Adjustment Range	0～600mm	0～600mm	0～600mm	0～600mm
Fixed Platform Dimension (Length *Width)	1400×2500 mm	1400×2500 mm	1400×2500 mm	1400×2500 mm
Mobile Platform Dimension (Length*Width)	1100×1200 mm	1100×1200 mm	1100×1200 mm	1100×1200 mm
Curb Weight	14000 kg	14000 kg	14000 kg	14000 kg
Boundary Dimension (Length WidthHeight)	9880×2550×3800 mm	9880×2550×3800 mm	10200×2550×3800 mm	10200×2550×3800 mm
Carriage External Dimensions (Length * Width * Height)	7200×2500×2400 mm	7500×2500×2400 mm	7500×2500×2400 mm	7500×2500×2400 mm

Engine Manufacturer/Model	ISUZU (ChongQing) Engine Co., LTD 4HK1-TCG40	ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL	ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL	ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL
Underpan)	QingLing Motor Co., LTD / QL5160XXY9QFRY	QingLing Motor Co., LTD /QL1160AQFRY	QingLing Motor Co., LTD /QL1180XQFRY	QingLing Motor Co., LTD /QL1180XQFRY
Gearbox)	QingLing Motor Co., LTD MLD-6Q	QingLing Motor Co., LTD MLD-6Q	QingLing Motor Co., LTD MLD-6Q	General Motors Co., LTD
