EMFC.01 Diamond Coated End Mill, 2 Flute Square End Mill with Neck

EMFC.01 Diamond Coated End Mill, 2 Flute Square End Mill with Neck
EMFC.01 Diamond Coated End Mill, 2 Flute Square End Mill with Neck
EMFC.01 Diamond Coated End Mill, 2 Flute Square End Mill with Neck
: http://metalworking-tool.com/7-1-emfc-01-diamond-coated-end-mills-2-flute-square-with-neck.html
  • EMF series carbide surface features a diamond coating with hardness comparable to that of natural diamond
  • Designed with extreme hardness for long life (10-50x) in graphite, composites & high silicon aluminum, plastic, wood; processed with the thickest diamond specially for graphite, carbon fibre and fibre glass thickest diamond coating, for Graphite, Carbon Fibre and Fibre Glass.
  • High performance on processing graphite electrodes and 3D glass mould

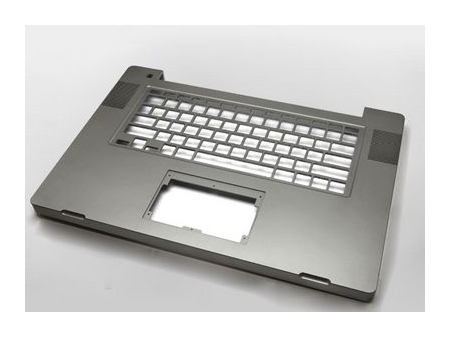

Application
Product Specifications
Coating Diamond Coated Work Material Aluminum Alloy / Copper Alloy / Graphite / 3D Glass / Resin
Helix Angle 30° to 40° Shank Cylindrical H6
Material IMC™ UMG Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide, Diamond coated Milling Tools, 2 Flute, Square Sharp with Long Neck (UNT-EMF01)
Unit: mm
UNT EDP # Click to Order Mill Dia.
D1 		Effective
Length L3 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EMFC.01.00505003 0.5 3 4 1.5 50 4
EMFC.01.00505004 0.5 4 4 1.5 50 2
EMFC.01.00505006 0.5 6 4 1.5 50 2
EMFC.01.00505008 0.5 8 4 1.5 50 2
EMFC.01.00605004 0.6 4 4 1.8 50 2
EMFC.01.00605006 0.6 6 4 1.8 50 2
EMFC.01.00605008 0.6 8 4 1.8 50 2
EMFC.01.00605010 0.6 10 4 1.8 50 2
EMFC.01.00605012 0.6 12 4 1.8 50 2
EMFC.01.00805005 0.8 5 4 2.5 50 2
EMFC.01.00805008 0.8 8 4 2.5 50 2
EMFC.01.00805012 0.8 12 4 2.5 50 2
EMFC.01.00805016 0.8 16 4 2.5 50 2
EMFC.01.01005003 1.0 3 4 3 50 2
EMFC.01.01005006 1.0 6 4 3 50 2
EMFC.01.01005010 1.0 10 4 3 50 2
EMFC.01.01005015 1.0 15 4 3 50 2
EMFC.01.01007515 1.0 15 4 3 75 2
EMFC.01.01505005 1.5 5 4 5 50 2
EMFC.01.01505010 1.5 10 4 5 50 2
EMFC.01.01505015 1.5 15 4 5 50 2
EMFC.01.01505020 1.5 20 4 5 75 2
EMFC.01.02005020 2.0 20 4 6 50 2
