Longitudinal Pipe Automatic Conveying System
Model: PLRCS-16Ca/24Ca/32Ca/40Ca
Technical Parameters- Pipe Diameter Applicable: DN400/DN600/DN800/DN1000
- Conveying Length: ≥1000MM (or depending on customers' requirements)
- Line Length: 50M (or depending on the situation)
- Line Height: 800MM
- Material of the Roller Bench: Carbon steel with blue treated surface (coated with rubber if necessary)
- Conveying Speed: 2~20M/Min
- Speed-Regulation Mode: Manual/VF stepless speed adjustment
- Control System: Manual/PLC control (or depending on situation)
- Turnover Mechanism: Nil (or depending on the situation)

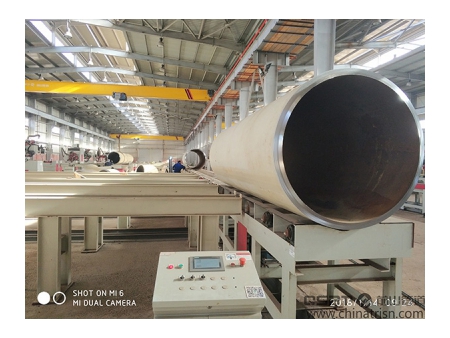

- The longitudinal pipe automatic conveying system conveys the pipe automatically or manually between work stages and workstations and the pipe can be removed from the machine with a turning mechanism if necessary.
- It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.

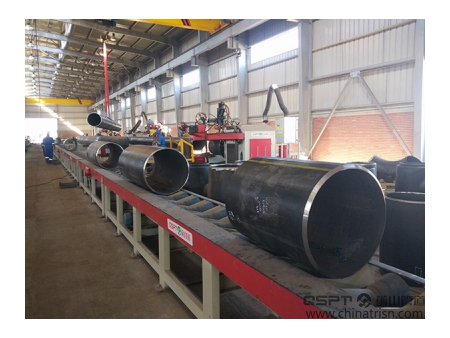

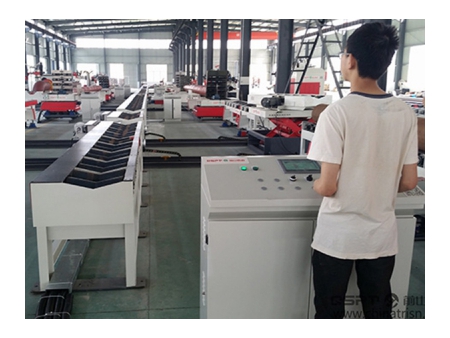

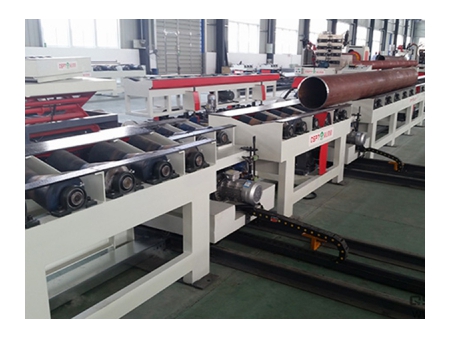

- Conveying the pipe from the cutting & beveling station to the fitting up and welding station; V type PU roller; According to the site location and transport conditions are divided into multiple sections manufacture; applicable pipe length conveying: 500mm (front), 1000mm (middle), 2000mm (back); variable frequency stepless speed control; PLC Console and manual control (wireless remote control for option); can be started and stopped by section; automatically stop with the lighting alarm when materials are reached.
