Sprinkler Parts (Nelson Sprinkler 3000 Series)

: http://rainfineirrigation.com/7-11-sprinkler-parts/195137/index.html

				R3000 .
		S3000 .
	D3000 .
PSI	6	10	15	20	25	30	35	40	45	50
BAR	0.41	0.7	1.0	1.4	1.7	2.0	2.4	2.8	3.1	3.4

D3000 Sprinkler
A fixed-spray sprinkler which produces a variety of patterns depending upon specific spray plates;
Flip-over dual spray allows easy conversion of spray patterns;
Choose spray plate options to germinate, irrigate, or chemigate;
Optional hose drag adapter for Low Energy Precision Application - LEPA;
Part circles available.

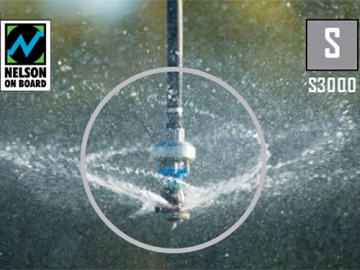

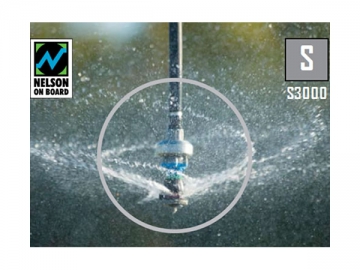

S3000 Sprinkler
Gentle spray at low pressure;
Utilize a free-spinning acting to produce a gentle, rain-like sprinkler pattern;
Designed for more sensitive crops and soils;
Superior uniformity with better overlap and lower application rates;
Crop-guarded body for low energy;
Part circles available.

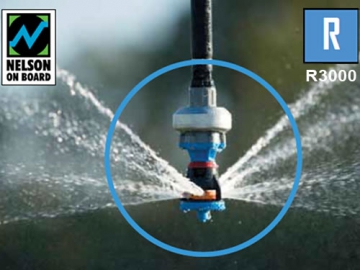

R3000 Sprinkler
A greater spray radius from rotating streams equates to lower average application rates, longer soak times and less runoff;
Increased overlap from adjacent sprinklers improves uniformity;
Reduces wind drift and evaporative loss;
Part circles available.

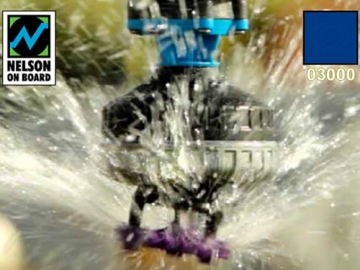

O3000 Sprinkler
Outstanding uniformity at low operating pressures;
Unassembled bracket eliminates debris hang-up and water-pattern misting that’s common to conventional sprinklers;
Long service life, reliable operation and durability;
Excellent water application, 10-20 PSI operating pressure;
Wind resistant, maximum water and energy conservation.

Color-Coded Nozzles
The 3TN nozzle system is at the center of the 3000 Series pivot product line with easy-to-identify, wear-resistant, and precision nozzles. The quick-change adapter allows you to remove the rotator for easy cleaning without extra tools or having to shut down the system. Change the nozzles mid-season without any hassle.

Versatile Modular Design
Because no one sprinkler is perfect in all conditions, the 3000 Series features a modular design with components that are easily switched out. You may start the season with one configuration and change to a different one later on.

Technical Parameters

Sprinkler & Plate Type		Description	Pressure Range	3TN Nozzle Range		Throw Diameter Data** (no-wind tests)
Sprinkler & Plate Type		Description	Pressure Range	Minimum	Maximum	Throw Diameter Data** (no-wind tests)
UpTop Application	U4-8° Blue Plate	For up-top applications: Utilizes 4 low-trajectory streams for excellent coverage and wind-fighting ability at higher pressures.	20-50 PSI 1.4-3.4 BAR	#14 @ 30 PSI (2.0 BAR) #16 for lower pressures	#50	Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht. 12 ft. (3.7 M) Throw Diameter 70 ft. (21.3 M)
UpTop Application	Multi-Trajectory WHITE Plate	For up-top applications: Designed with multiple trajectory streams for superior up-top performance at low pressures.	15-30 PSI 1.0-2.0 BAR	#14 @ 15 PSI (1.0 BAR)	#50	Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht. 12 ft. (3.7 M) Throw Diameter 74 ft. (22.6 M)
Drop Tube Application	D4-8° Green Plate	For drop tube applications: Utilizes 4 low-trajectory streams for maximum coverage and wind-fighting ability.	20-50 PSI 1.4-3.4 BAR	#14 @ 30 PSI (2.0 BAR) #16 for lower pressures	#50	Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht. 9 ft. (2.7 M) 6 ft. (1.8 M) Throw Diameter 72 ft. (21.9 M) 64 ft. (19.5 M)
	D6-12° Red Plate	For drop tube applications 6 medium-trajectory, diffused streams provide droplet breakup with low stream height.	15-30 PSI 1.0-2.0 BAR	#14 @ 15 PSI (1.0 BAR)	#50	Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht. 9 ft. (2.7 M) 6 ft. (1.8 M) Throw Diameter 66 ft. (20.1 M) 58 ft. (17.7 M)
	Multi-Trajectory Orange Plate	For drop tube applications Designed with multiple trajectory streams to penetrate the upper canopy of tall crops.	15-30 PSI 1.0-2.0 BAR	#14 @ 15 PSI (1.0 BAR)	#50	Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht. 9 ft. (2.7 M) 6 ft. (1.8 M) Throw Diameter 72 ft. (21.9 M) 66 ft. (20.1 M)
	Multi-Trajectory Brown Plate	For drop tube applications: 10 multiple trajectory streams provide maximum uniformity and superior performance on low growing crops like potatoes.	15-30 PSI 1.0-2.0 BAR	#14 @ 15 PSI (1.0 BAR)	#50	Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht. 9 ft. (2.7 M) 6 ft. (1.8 M) Throw Diameter 68 ft. (20.7 M) 62 ft. (18.9 M)
