End Gun (Pivot)

: http://rainfineirrigation.com/7-13-end-gun/195083/index.html

Advantages of the Pivot End Gun:
Slow, steady and uniform forward and reverse drive action;
Pivot gun doesn’t require solenoid when used in conjunction with a booster pump.
Heavy-duty construction ensures long service life and reliability;
Valve combinations available for maximum system efficiency;
This irrigation equipment is easy to operate, maintain and repair with readily available parts.

Technical Parameters of Pivot End Gun

Nelson-SR (Taper bore nozzle,24^oTrajectory)
Pressure (Bar)	Nozzle 15.2mm-0.6"			Nozzle 16.5mm-0.65"			Nozzle 17.8mm-0.7"			Nozzle 19.1mm-0.75"			Nozzle 20.3mm-0.8"
	Flow		Radius	Flow		Radius	Flow		Radius	Flow		Radius	Flow		Radius
	m³/h	l/s	m	m³/h	l/s	m	m³/h	l/s	m	m³/h	l/s	m	m³/h	l/s	m
1.75	11.4	3.17	48	13.4	3.72	49	15.5	4.3	51	17.7	4.91	54	20.1	5.59	56
2.00	12.2	3.39	51	14.3	3.98	52	16.5	4.59	56	18.9	5.25	58	21.5	5.97	59
2.50	13.6	3.79	55	16	4.45	58	18.5	5.14	60	21.1	5.87	62	24	6.68	64
3.00	15.9	4.15	59	17.6	4.88	61	20.3	5.63	63	23.1	6.43	66	26.3	7.32	69
3.50	16	4.48	62	19	5.27	64	21.9	6.08	67	25	6.95	70	28.4	7.9	73
4.00	17.2	4.79	65	20.3	5.63	67	23.4	6.5	71	26.7	7.43	73	30.4	8.45	76
4.50	18.3	5.08	68	21.5	5.97	71	24.8	6.89	75	28.4	7.88	78	32.3	8.96	80
5.00	19.3	5.35	70	22.7	6.3	74	26.1	7.26	78	29.9	8.3	80	34	9.45	84
5.50	20.2	5.61	73	23.8	6.6	77	27.4	7.62	81	31.3	8.71	83	35.7	9.9	86
6.00	21.1	5.86	74	24.8	6.9	79	28.6	7.96	84	32.7	9.09	85	37.2	10.3	87

Twin101/plus(Taper bore nozzle,24^oTrajectory)
Pressure (Bar)	Nozzle 16mm-0.63"			Nozzle 18mm-0.71"			Nozzle 20mm-0.79"			Nozzle 22mm-0.87"			Nozzle 24mm-0.94"
	Flow		Radius	Flow		Radius	Flow		Radius	Flow		Radius	Flow		Radius
	m³/h	l/s	m	m³/h	l/s	m	m³/h	l/s	m	m³/h	l/s	m	m³/h	l/s	m
2.0	13.9	3.86	27.9	17.6	4.89	29.7	21.7	6.04	31.5	26.3	7.3	33.1	31.3	8.69	34.7
2.5	15.5	4.32	30.4	19.7	5.47	32.4	24.3	6.75	34.3	29.4	8.17	36.1	35	9.72	37.8
3.0	17	4.73	32.6	21.6	5.99	34.7	25.6	7.39	36.7	32.2	8.95	38.7	38.3	10.65	40.5
3.5	18.4	5.11	34.5	23.3	6.47	36.8	28.7	7.99	38.9	34.8	9.66	41	41.4	11.5	43
4.0	19.7	5.46	36.3	24.9	6.91	38.7	30.7	8.54	41	37.2	10.33	43.1	44.3	12.29	45.2
4.5	20.9	5.8	38	26.4	7.33	40.5	32.6	9.05	42.8	39.4	10.96	45.1	46.9	13.04	47.3
5.0	22	6.11	39.5	27.8	7.73	42.1	34.4	9.54	44.6	41.6	11.55	46.9	49.5	13.74	49.2
5.5	23.1	6.41	41	29.2	8.11	43.7	36	10.01	46.2	43.6	12.11	48.7	51.9	14.42	51
6.0	24.1	6.69	42.4	30.5	8.47	45.1	37.6	10.46	47.8	45.5	12.65	50.3	54.2	15.06	52.7
6.5	25.1	6.96	43.6	31.7	8.81	46.5	39.2	10.88	49.3	47.4	13.17	51.9	56.4	15.67	54.4

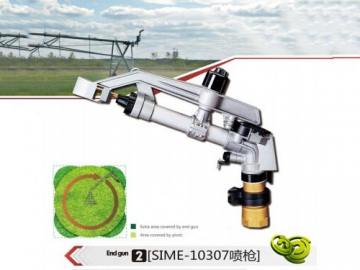

SIME-10307(Taper bore nozzle,24 o Trajectory)
Pressure (Bar)	Nozzle 12mm-0.47"			Nozzle 14mm-0.55"			Nozzle 16mm-0.63"			Nozzle 18mm-0.71"			Nozzle 20mm-0.79"
	Flow		Radius	Flow		Radius	Flow		Radius	Flow		Radius	Flow		Radius
	m³/h	l/s	m	m³/h	l/s	m	m³/h	l/s	m	m³/h	l/s	m	m³/h	l/s	m
1.5	7.8	2.16	19
2.0	9.1	2.53	22	11.7	3.25	23	14.8	4.12	24	18.5	5.15	24	22.5	6.27	25
3.0	10.9	3.03	24	14.3	3.98	28	18.2	5.05	30	22.7	6.3	32	27.6	7.67	33
4.0	12.6	3.52	27	16.6	4.61	31	21	5.85	34	26.2	7.27	35	31.9	8.87	37
5.0				18.5	5.15	34	23.4	6.52	36	39.2	8.12	38	35.6	9.9	41

BoosterPump for end gun

RFB30/72
Model		Power		Inlet	Outlet	Max.Flow	Max.Head	Max.Suction	Dim.	G.W.(kg)		20' Loading Qty
Single-Phase	Three-Phase	KW	HP	(Inch)	(Inch)	m³/h	(m）	(m)	(mm)	G(s)	G(t)	(pcs)
RFB30		1.5	2.0	2.0	2.0	30	22.5	7.0	425×250×295	25	24.5	800
RFB72		2.2	3.0	3.0	3.0	72	18.5	7.0	520×295×355	37	37	540
