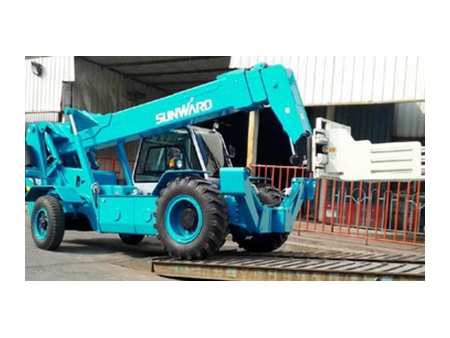

Telescopic Handler SWTH3915

Max. lifting height: 14.46m
Max. lifting capacity: 4000kg
Engine power: 73.6kW

Performance Parameters

Dimension (L×W×H)		mm	7366×2320×2450
Basic parameters	Machine weight (unladen)	kg	12800
	Rated load capacity	kg	4000
	Max. handling height	m	14-46
	Max. overhang length	m	9J
	Max. overhang length load	kg	1000
	Ground clearance	mm	300
	Turning radius (outside)	m	5.06
	Traction	KN	40
Performance	Boom raising speed	s	9
	Boom lowering speed	s	10
	Boom retracting speed	s	20
	Boom extending speed	s	16
Transmission system	Transmission mode		Hydrodynamic transmission
	Gear (forward and reverse)		2/ 2
	Max. traveling speed	km/h	36
	Gradeability	%	30
Engine	Brand		Yuchai
	Model		YCD4J23T8-100
	Power		73.6/ 2200
	Max. torque	N.m/rpm	380/ ≤1650
	Fuel injection mode		Electronic fuel injection
	Cooling mode		Water cooling
System capacity	Hydraulic oil	L	180
	Fuel	L	140
	Engine oil	L	7.5
	Cooling system	L	15
Fork	L×W×T	mm	1220×125×50
	Max. distance between forks	mm	1200
	Rotation angle	°	117
Tyre	Front wheel specifications		15.5-25-16PR
Tyre	Rear wheel specifications		9.00-20-11PR

Statement of technical specification: all parameters above are subject to change due to the continuous improvement of the product, please to get the latest info updates.
