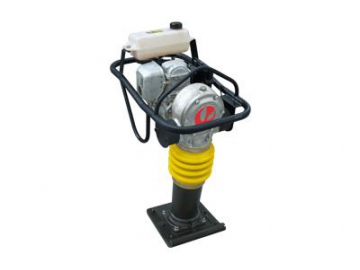

Vibratory Rammer with Air Filter
- The VR70S vibratory rammer with air filter features a larger size ramming shoe, long shoe stroke and stronger impact force, thus giving it a high working efficiency. It is suitable for backfill compaction of narrow areas in municipal engineering and auxiliary vibrations and compaction of soils on slopes, trenches and other confined areas.
- Equipped with an air filter, this rammer can filter fine dust to provide an improved working environment.
- The operator handle features attractive and streamlined appearance with ergonomic structural design, making it easier to control its forward or backward movement and also facilitates the job of soil compaction.
Description
Technical Specifications
| Model | VR70S |
| Stroke at the ramming shoe (mm) | 60 |
| Impact frequency (Hz) | 10 |
| Impact force (kN) | 15 |
| Travel speed (m/HR) | 820 |
| Ramming shoe size (W×L) (mm) | 280×330 |
| Fuel tank capacity (L) | 2.3 |
Optional Engines
| Engine model | Net weight (kg) | Overall dimension L×W×H (mm) | Engine type | Engine power (Hp) | Engine fuel |
| Honda GX100K1-AR | 70 | 480×780×1020 | Honda Air-cooled 4 stroke | 3 | Gasoline |
| Honda GXR120T | 74 | 480×780×1020 | Honda Air-cooled 4 stroke | 4 | Gasoline |
| Honda GX120K1-AR | 74 | 480×780×1020 | Honda Air-cooled 4 stroke | 4 | Gasoline |
| Robin EH12-2D | 76 | 480×780×1020 | Robin Air-cooled 4 stroke | 4 | Gasoline |
| Robin EY15-3C(Reinforce) | 73 | 430×780×1080 | Robin Air-cooled 4 stroke | 3 | Gasoline |
| YQHL170F(Reinforced) | 90 | 460×780×1030 | Hailin Air-cooled 4 stroke | 4.2 | Diesel |
