Electric Order Picker

: http://eleclifttruck.com/7-3-electric-order-picker.html

Introduction

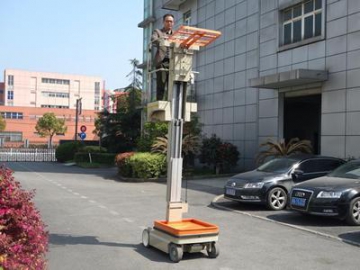

The maximum lifting height of the electric order picker is 3100mm, making it suitable for use in large warehouses. With a small dead load, operation is flexible and convenient. The driving space is wide, which also facilitates working flexibility.

Detail features

This electric order picker achieves movement even when fully elevated. Users can choose and transport materials within the entire height range.
It is equipped with a 24V power source for exceptional power.
The bottom of the electric order picker features 4 wheels, allowing drivers to carry out smooth movement and transportation.
The picker features a flexible maneuverability, making it an efficient choice for material retrieval.
The low walk-in platform makes it easy to enter and exit the picker.
Self-locking doors offer a safer working environment.
A precisely controlled operating handle improves the working efficiency.
It is equipped with a built in safety system, which includes a pedal type switch, built-in inclination sensor, flash lamp and audible alarm.

Parameters

Basic dimension
Type	ZDYT3-50
Max platform height	3.1m
Max working height	5.1m
Platform dimension	696 × 564mm
Platform entry height
Operator	1
Folding state length	1595mm
Folding state width	750mm
Folding state height	1528mm
Load capacity
Total weight (for reference)	520kg
Operating room load capacity	136kg
Capacity of lifting goods shelf	90kg
Capacity of floor goods shelf	115kg
Performance
Moving mode	Automatic
Moving speed (1/2/3 grade)	5.4/3.2/1.6km/h
Driving system	Proportional drive
Cycle performance of the platform	Lifting: 18 sec, descending: 20sec
Max turning angle	80°
Outside/inner turning radius	1.4 / 0m
gradeability	0.15
Wind resistance	12.5m/s
Rated oil pressure	10Mpa
Max horizontal guiding force	200N
Wheel	Alete solid rubber tyre
Power source
Power supply	DC 24V
Power	0.8kW
Storage battery	12V/150Ah × 2 pieces
Charging source	220V AC or 110V AC
