EMFC.03 Diamond Coated End Mill, 2 Flute Ball End Mill with Taper Neck

EMFC.03 Diamond Coated End Mill, 2 Flute Ball End Mill with Taper Neck
EMFC.03 Diamond Coated End Mill, 2 Flute Ball End Mill with Taper Neck
EMFC.03 Diamond Coated End Mill, 2 Flute Ball End Mill with Taper Neck
: http://metalworking-tool.com/7-3-emfc-03-diamond-coated-end-mills-2-flute-ball-with-taper-neck.html
  • EMF series carbide surface features a diamond coating with hardness comparable to that of natural diamond
  • Designed with extreme hardness for long life (10-50x) in graphite, composites & high silicon aluminum, plastic, wood; processed with the thickest diamond specially for graphite, carbon fibre and fibre glass

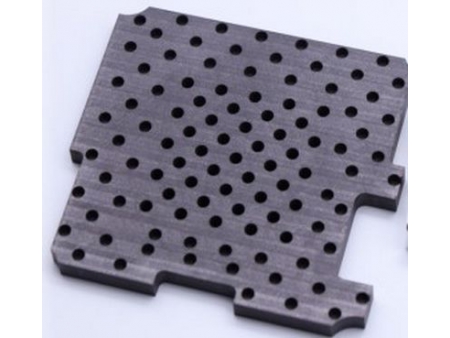

  • High performance on processing graphite electrodes and 3D glass mould
Application
Product Specifications
Coating Diamond Coated Work Material Aluminum Alloy / Copper Alloy / Graphite / 3D Glass / Resin
Helix Angle 30° to 40° Shank Cylindrical H6
Material IMC™ UMG Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide, Diamond coated Milling Tool, 2 Flute Ball End Mill with Taper Neck (UNT-EMF03)
Unit: mm
UNT EDP # Click to Order Radius
R 		Effective
Length L3 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EMFC.03.00605004 R0.3 4 4 1.2 50 2
EMFC.03.00605006 R0.3 6 4 1.2 50 2
EMFC.03.00605008 R0.3 8 4 1.2 50 2
EMFC.03.00805006 R0.4 6 4 1.6 50 2
EMFC.03.00805008 R0.4 8 4 1.6 50 2
EMFC.03.00805010 R0.4 10 4 1.6 50 2
EMFC.03.01005008 R0.5 8 4 2 50 2
EMFC.03.01005010 R0.5 10 4 2 50 2
EMFC.03.01005012 R0.5 12 4 2 50 2
EMFC.03.01006015 R0.5 15 4 2 60 2
EMFC.03.01006020 R0.5 20 4 2 60 2
EMFC.03.01505010 R0.75 10 4 3 50 2
EMFC.03.01505015 R0.75 15 4 3 50 2
EMFC.03.01507520 R0.75 20 4 3 75 2
EMFC.03.01507525 R0.75 25 4 3 75 2
EMFC.03.02005010 R1 10 4 4 50 2
EMFC.03.02005015 R1 15 4 4 50 2
EMFC.03.02007520 R1 20 4 4 75 2
EMFC.03.02007525 R1 25 4 4 75 2
EMFC.03.02007530 R1 30 4 4 75 2
EMFC.03.02010040 R1 40 4 4 100 2
EMFC.03.03005015 R1.5 15 4 6 50 2
EMFC.03.03006015 R1.5 15 4 6 60 2
EMFC.03.030060153 R1.5 15 3 6 60 2
EMFC.03.03007525 R1.5 25 4 6 75 2
EMFC.03.030075253 R1.5 25 3 6 75 2
EMFC.03.04005020 R2 20 4 10 50 2
EMFC.03.04006020 R2 20 4 8 60 2
EMFC.03.04007525 R2 25 4 8 75 2
EMFC.03.04010040 R2 40 4 8 100 2
EMFC.03.06006012 R3 12 6 12 60 2
EMFC.03.06007530 R3 30 6 12 75 2
EMFC.03.06010040 R3 40 6 12 100 2
EMFC.03.06015060 R3 60 6 12 150 2
EMFC.03.08007530 R4 30 8 16 75 2
EMFC.03.08010045 R4 45 8 16 100 2
EMFC.03.08015060 R4 60 8 16 150 2
EMFC.03.10010040 R5 40 10 20 100 2
EMFC.03.10015060 R5 60 10 20 150 2
EMFC.03.12010050 R6 50 12 25 100 2
EMFC.03.12015060 R6 60 12 25 150 2
