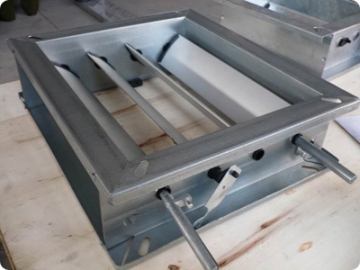

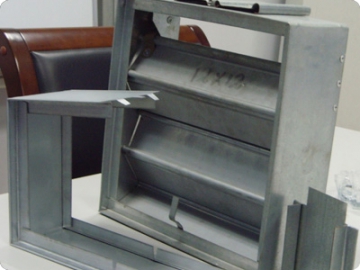

Fire Damper

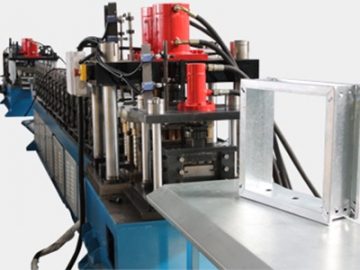

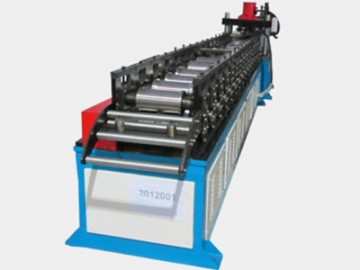

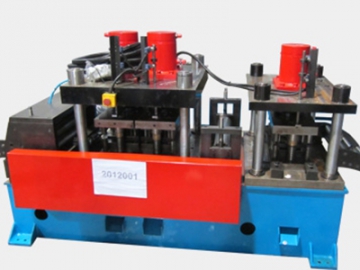

The fire damper production line combines multiple technologies of material feeding, hole punching, roll forming and cutting, mainly consisting of uncoiling system, punching system, roll forming system (welding technology), cutting system, electronic control system, etc.
Gallery
Technical Data
| NO. | Item | Unit | Parameter | Remark | |
| 1 | Material | Type | galvanized sheet, mild steel, etc. | ||
| Strength of material sheet | Map | ≥350 | |||
| Thickness of material sheet | mm | 0.8~1.5 | customizable | ||
| 2 | Profile sizes | mm | See Figure | customizable | |
| 3 | Production speed | m/min | 2~6 | ||
| 4 | Material of roller | GCr15 quenching treatment | |||
| 5 | Drive type | Gearbox driven | |||
| 6 | Motor Power | kw | About 34 | ||
| 7 | Electric control system | PLC variable frequency control | |||
| 8 | Dimensions(Length*width*height) | m | 28X4X3.9 | ||
