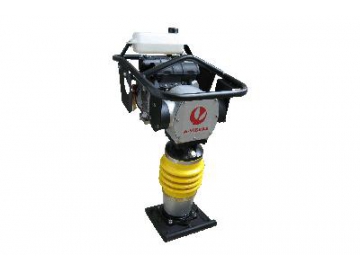

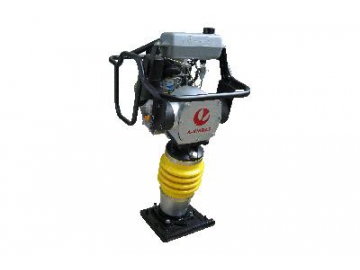

Vibratory Rammer (Diesel and Gas Powered Type )
- Equipped with an air filter, this diesel or gas powered vibratory rammer can filter fine dust to provide an improved working environment.
- The operator handle allows the rammer easy to control the forward and backward movement, making operation easier.
- This vibratory rammer has the advantages of a larger size ramming shoe, long shoe stroke and stronger impact force, giving it a high working efficiency. It is suitable for backfill compaction of narrow areas in municipal engineering and auxiliary vibration or compaction of soils on slopes, trenches and other confined areas.
Description
Technical Specifications
| Model | VR70S |
| Stroke at the ramming shoe (mm) | 60 |
| Impact frequency (Hz) | 10 |
| Impact force (kN) | 15 |
| Travel speed (m/HR) | 820 |
| Ramming shoe size (W×L) (mm) | 280×330 |
| Fuel tank capacity (L) | 2.3 |
Optional Engines
| Engine model | Net weight (kg) | Overall dimension (L×W×H) (mm) | Engine type | Engine power (Hp) | Engine fuel |
| Honda GX100K1-AR | 70 | 480×780×1020 | Honda Air-cooled 4 stroke | 3 | Gasoline |
| Honda GXR120T | 74 | 480×780×1020 | Honda Air-cooled 4 stroke | 4 | Gasoline |
| Honda GX120K1-AR | 74 | 480×780×1020 | Honda Air-cooled 4 stroke | 4 | Gasoline |
| Robin EH12-2D | 76 | 480×780×1020 | Robin Air-cooled 4 stroke | 4 | Gasoline |
| Robin EY15-3C(Reinforce) | 73 | 430×780×1080 | Robin Air-cooled 4 stroke | 3 | Gasoline |
| YQHL170F(Reinforced) | 90 | 460×780×1030 | Hailin Air-cooled 4 stroke | 4.2 | Diesel |
